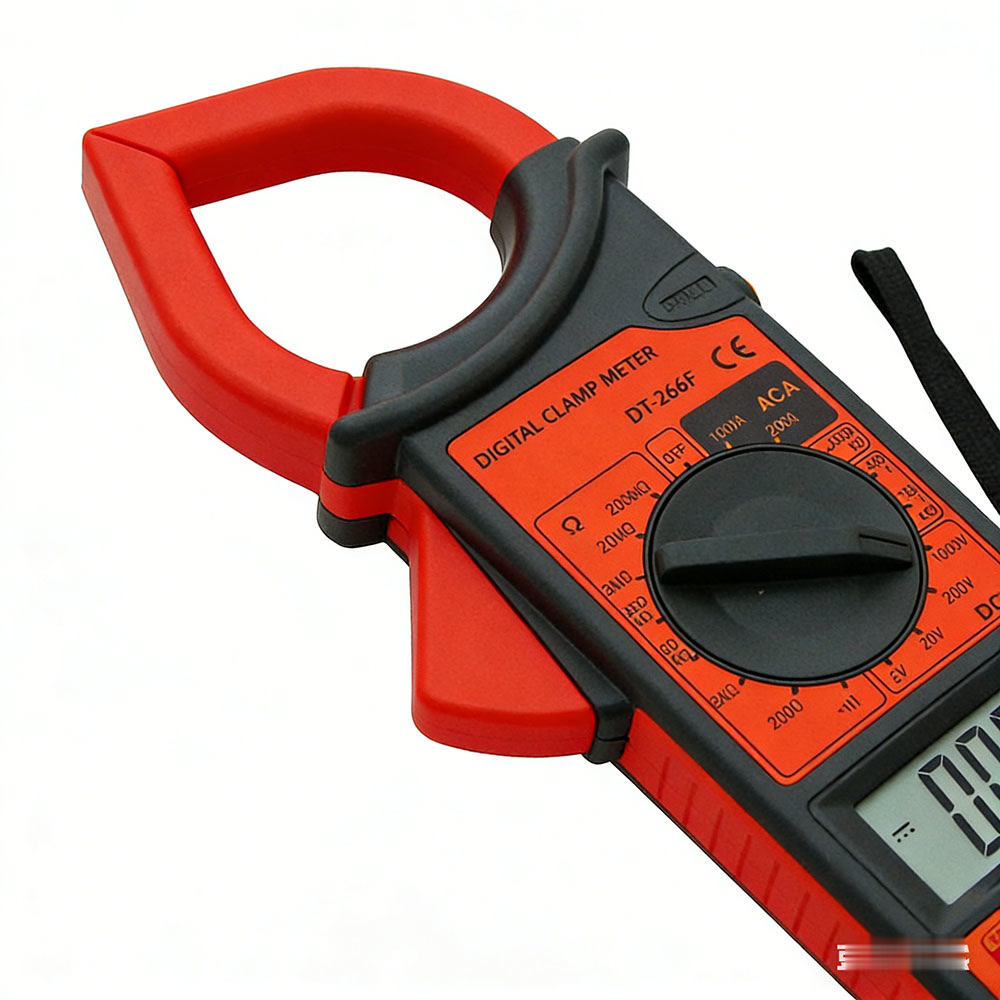

DM6266 Series
Models in DM6266 Series: DM6266F, DM6266

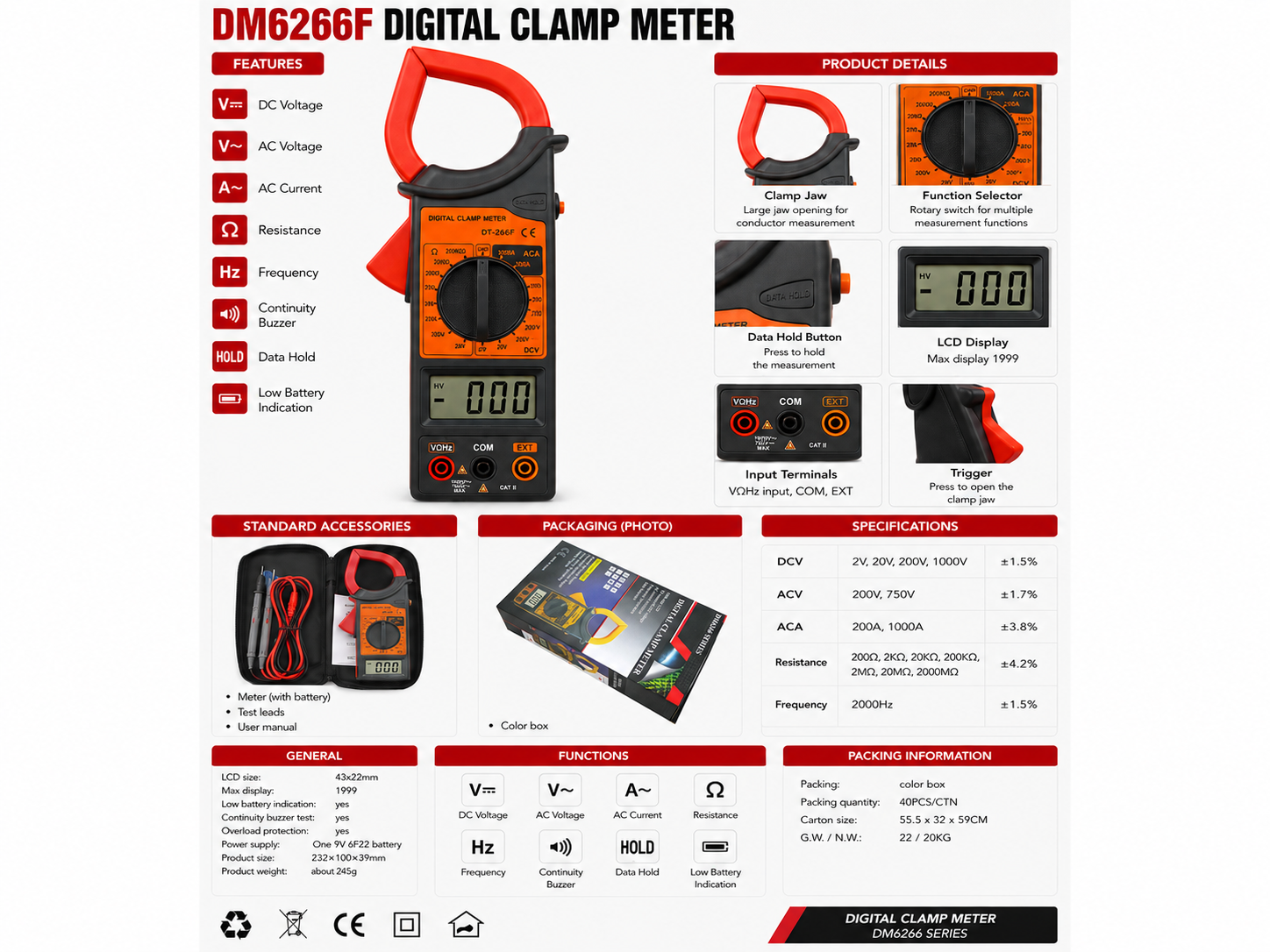

DM6266F
- DCV: 2V,20V,200V,1000V u00b11.5%
- ACV: 200V,750V u00b11.7%
- Resistance: 200u03a9,2Ku03a9,20ku03a9,200Ku03a9,2Mu03a9,20Mu03a9,2000M u03a9 u00b14.2%
Features
- 1999-count (3u00bd-digit) LCD display
- Continuity buzzer for fast open/short checks
- Low battery indication
- Overload protection on all ranges
Specifications
| Function | DM6266F | DM6266 |
|---|---|---|
| DCV | 2V,20V,200V,1000V u00b11.5% | 1000V u00b11.5% |
| ACV | 200V,750V u00b11.7% | 750V u00b11.7% |
| ACA | 200A,1000A u00b13.8% | 200A,1000A u00b13.8% |
| Resistance | 200u03a9,2Ku03a9,20ku03a9,200Ku03a9,2Mu03a9,20Mu03a9,2000M u03a9 u00b14.2% | 200u03a9,20ku03a9 uff0820Muff0c2000Muff09 u00b14.2% |
| Frequency | 2000Hz u00b11.5% | — |
| LCD Size | 43x22mm | 43x22mm |
| MAX Display | 1999 | 1999 |
| Low Battery Indication | yes | yes |
| Continuity Buzzer Test | yes | yes |
| Overload Protection | yes | yes |
| Power Supply | One 9V 6F22 battery | One 9V 6F22 battery |
| Product Size | 232u00d7100u00d739mmu3000 | 232u00d7100u00d739mmu3000 |
| Product Weight | about 245g | about 245g |

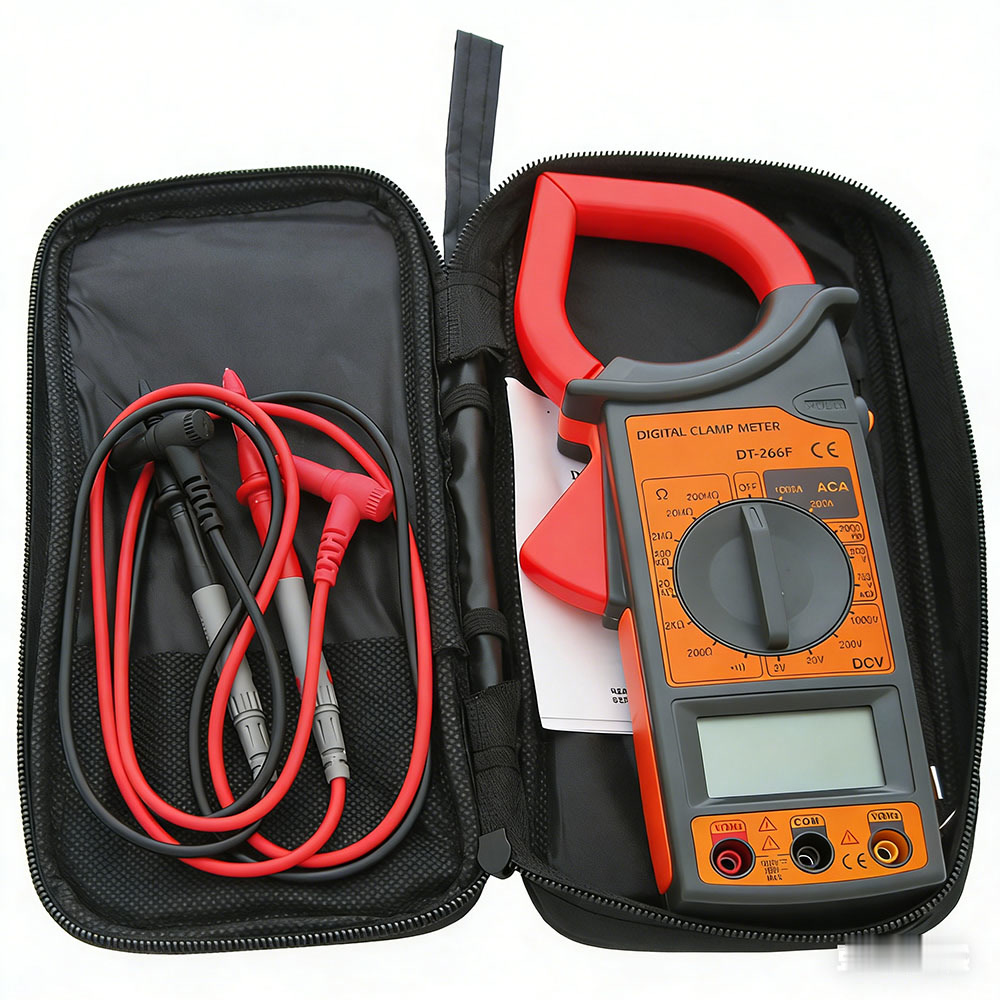

| Standard Accessories | meter (with battery), manual | meter (with battery), manual |
Applications
- AC current measurement without interrupting the circuit
- Industrial motor, drive and compressor maintenance
- Power distribution panel and load monitoring
- HVAC and refrigeration system checks
- Frequency and motor speed verification on variable-frequency drives
Docs & Software
Packaging

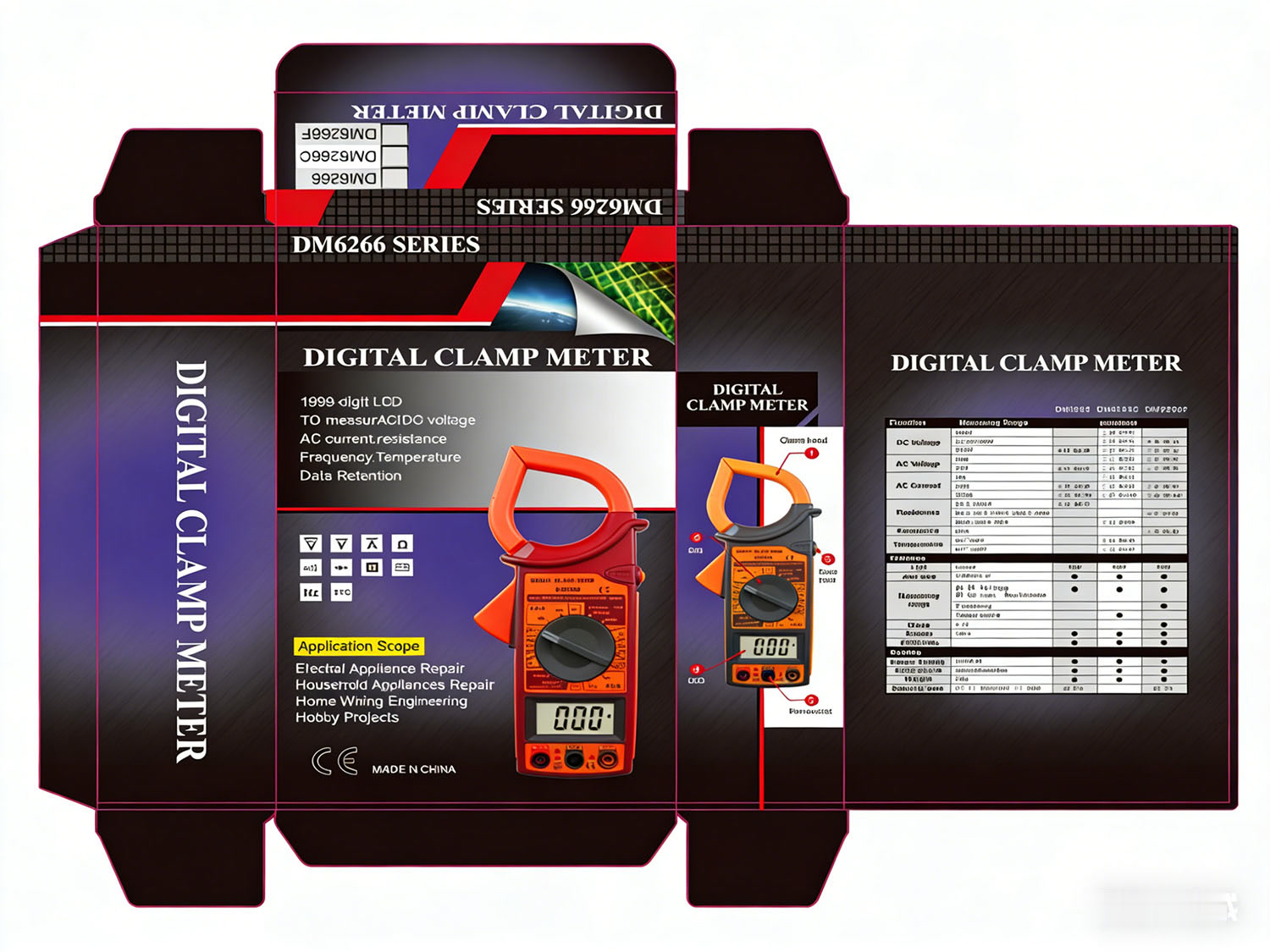

Packing: color box Packing quantity: 40PCS/CTN Carton size: 55.5 X 32 X 59CM G.W. / N.W.: 22/20KG
