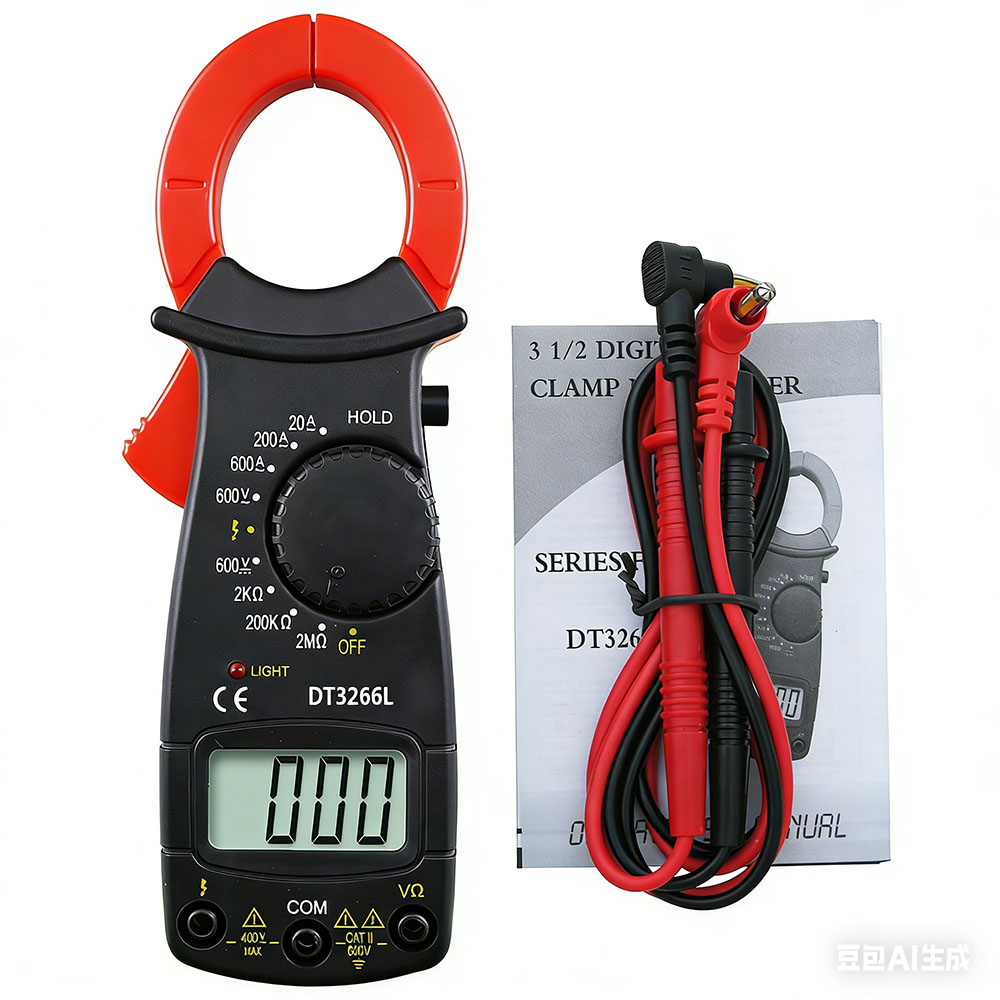

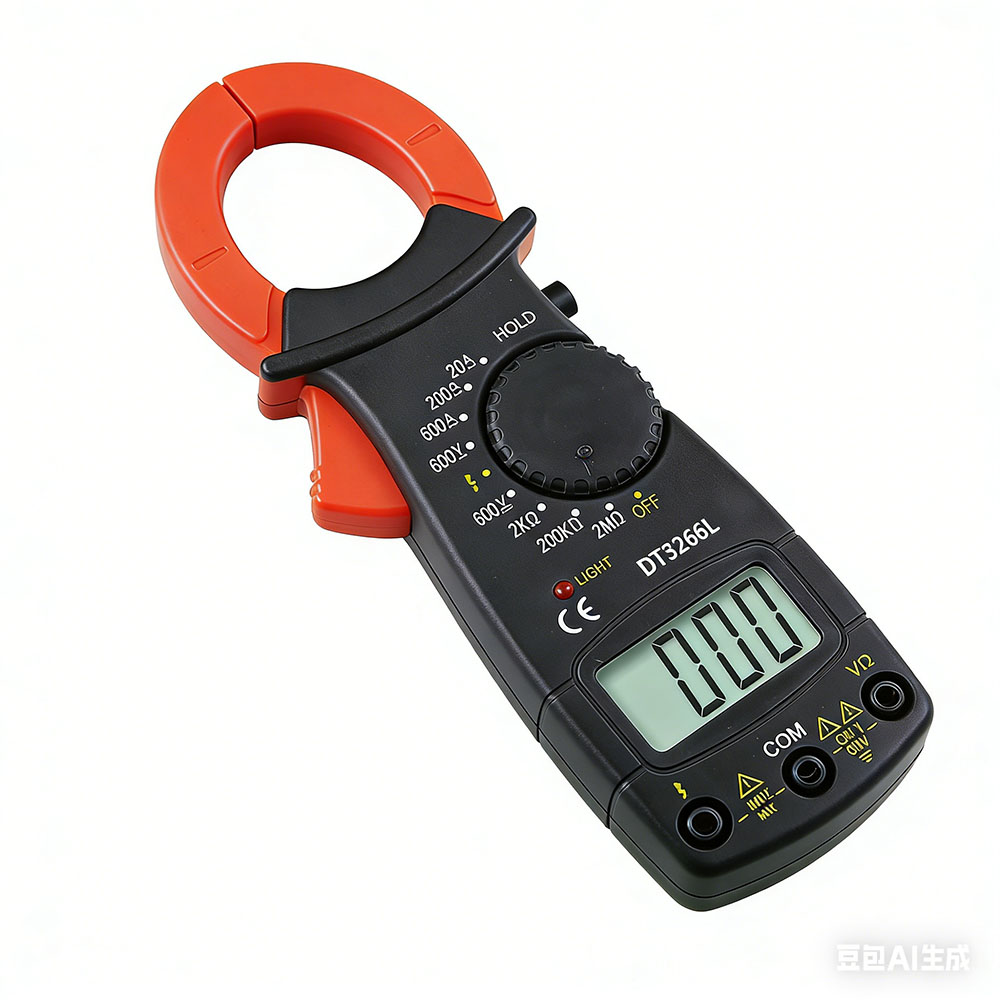

DT3266L Digital Clamp Meter
AC current measurement without interrupting the circuit
DT3266L
- DCV: 600V u00b11.3%
- ACV: 600V u00b11.7%
- Resistance: 200ku03a9,2Mu03a9 u00b11.4%
Features
- 1999-count (3u00bd-digit) LCD display
- Non-contact voltage (NCV) detection for safety
- Diode test function
- Low battery indication
- Overload protection on all ranges

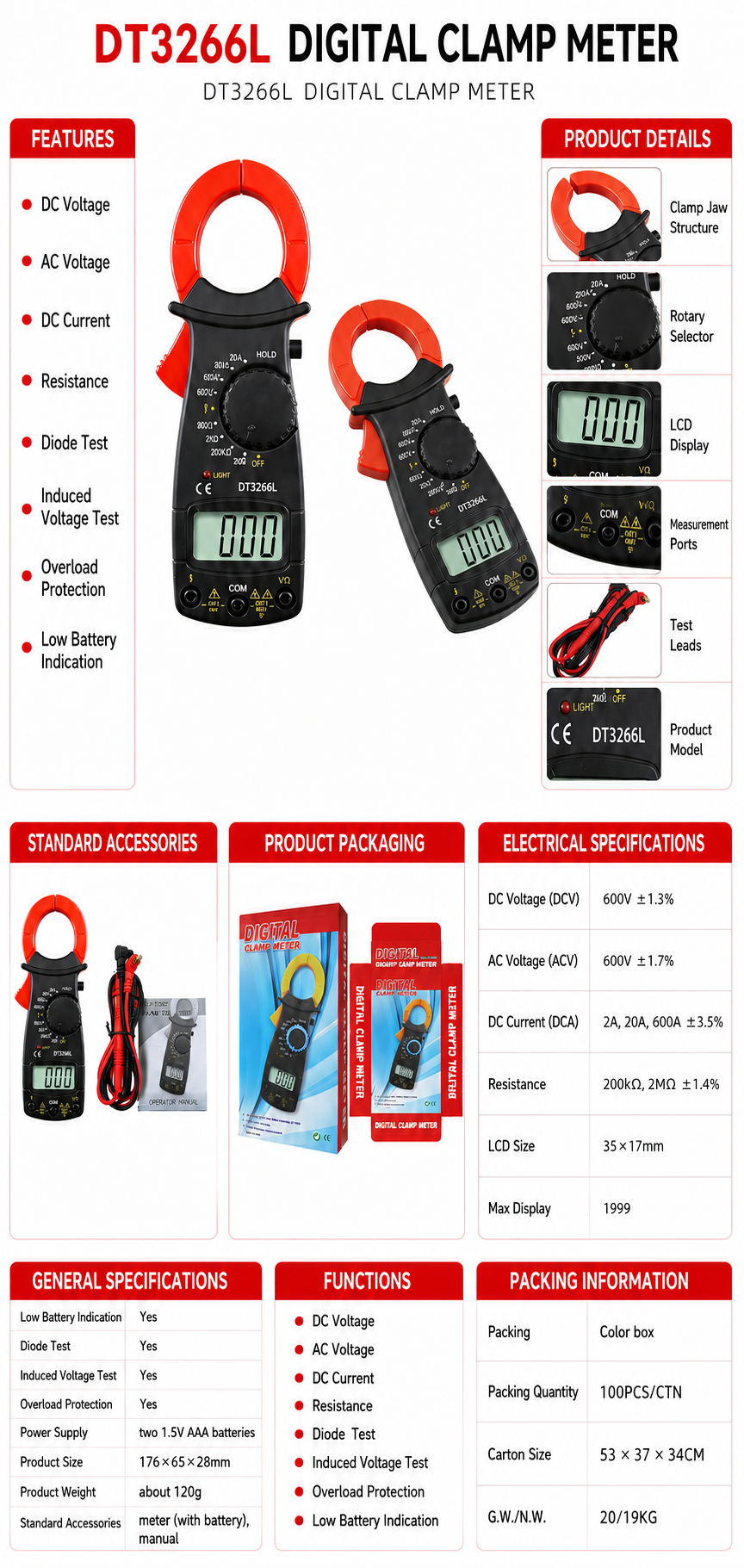

Specifications
| Function | DT3266L |
|---|---|
| DCV | 600V u00b11.3% |
| ACV | 600V u00b11.7% |
| DCA | 2A,20A,600A u00b13.5% |
| Resistance | 200ku03a9,2Mu03a9 u00b11.4% |
| LCD Size | 35x17mm |
| MAX Display | 1999 |
| Low Battery Indication | yes |
| Diode Test | yes |
| Overload Protection | yes |
| Power Supply | tow 1.5V AAA battery |
| Product Size | 176u00d765u00d728mmu3000 |
| Product Weight | about 120g |
| Standard Accessories | meter (with battery), manual |
Applications
- AC current measurement without interrupting the circuit
- Industrial motor, drive and compressor maintenance
- Power distribution panel and load monitoring
- HVAC and refrigeration system checks
Docs & Software
Packaging
Packing: color box Packing quantity: 100PCS/CTN Carton size: 53 X 37 X 34CM G.W. / N.W.: 20/19KG
