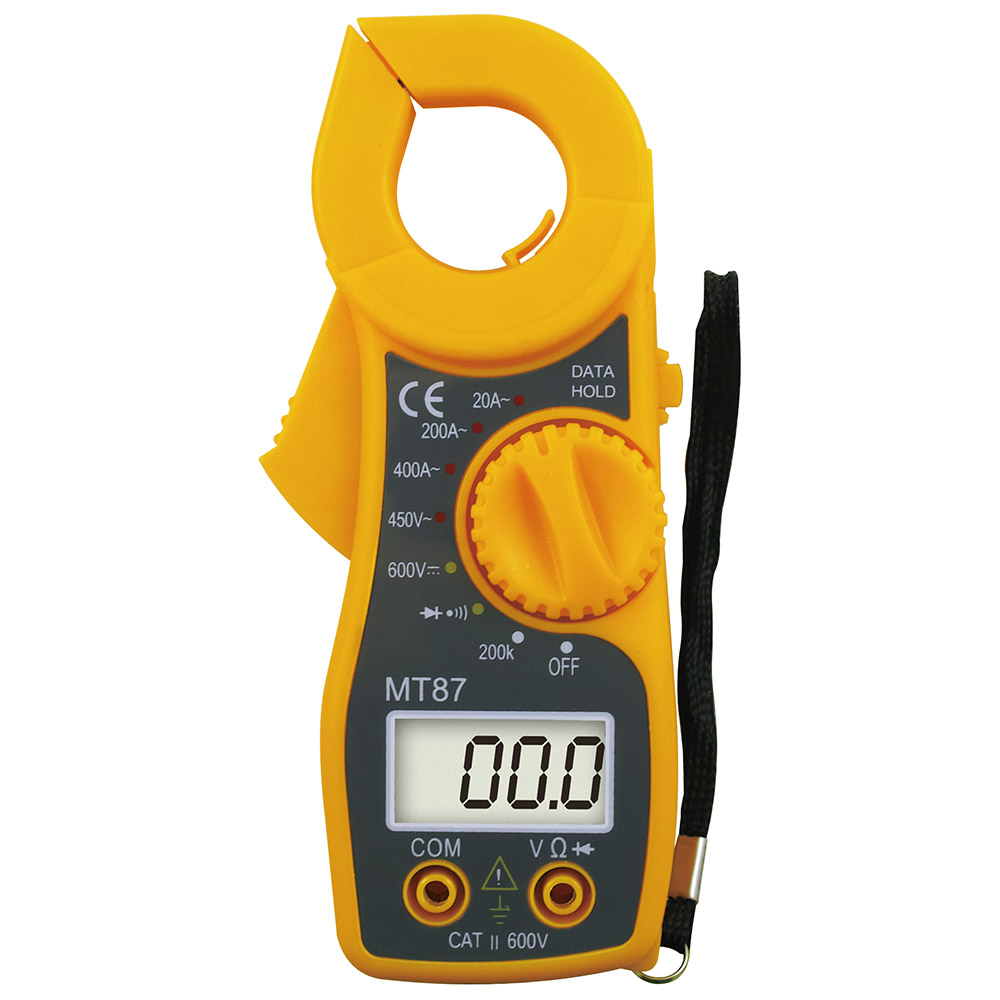

MT87 Digital Clamp Meter
AC current measurement without interrupting the circuit
MT87
- DCV: 600V u00b11.5%
- ACV: 450V u00b12.4%
- Resistance: 200Ku03a9 u00b12.0% ACA:20A-200A-400A u00b13.5%
Features
- 1999-count (3u00bd-digit) LCD display
- Data hold to freeze readings
- Diode test function
- Continuity buzzer for fast open/short checks
- Low battery indication
- Overload protection on all ranges
Specifications
| Function | MT87 |
|---|---|
| DCV | 600V u00b11.5% |
| ACV | 450V u00b12.4% |
| Resistance | 200Ku03a9 u00b12.0% ACA:20A-200A-400A u00b13.5% |
| LCD Size | 31x16mm |
| MAX Display | 1999 |
| Low Battery Indication | yes |
| Overload Protection | yes |
| Diode Test | yes |
| Continuity Buzzer Test | yes |
| Data Hold | yes |
| Power Supply | tow 1.5V AAA battery |
| Product Size | 149x64x32mm |
| Product Weight | about 110g (with holster) |

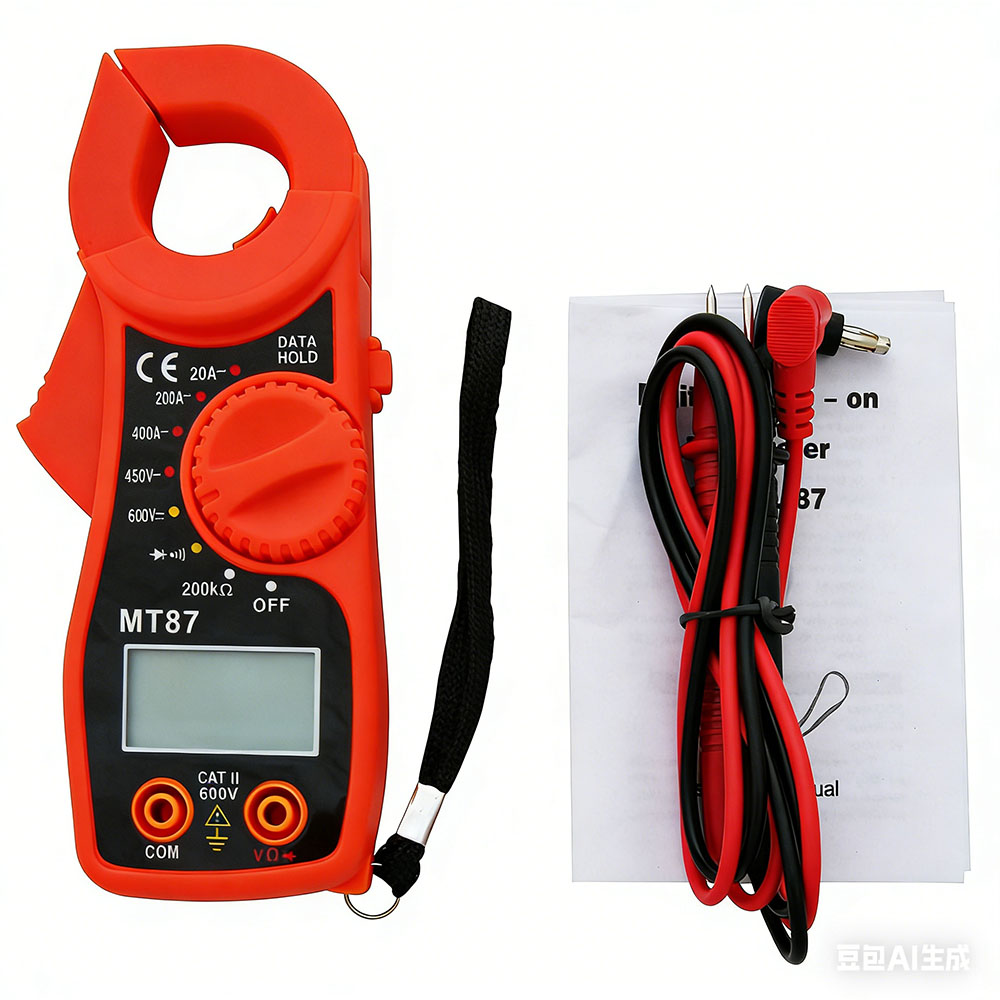

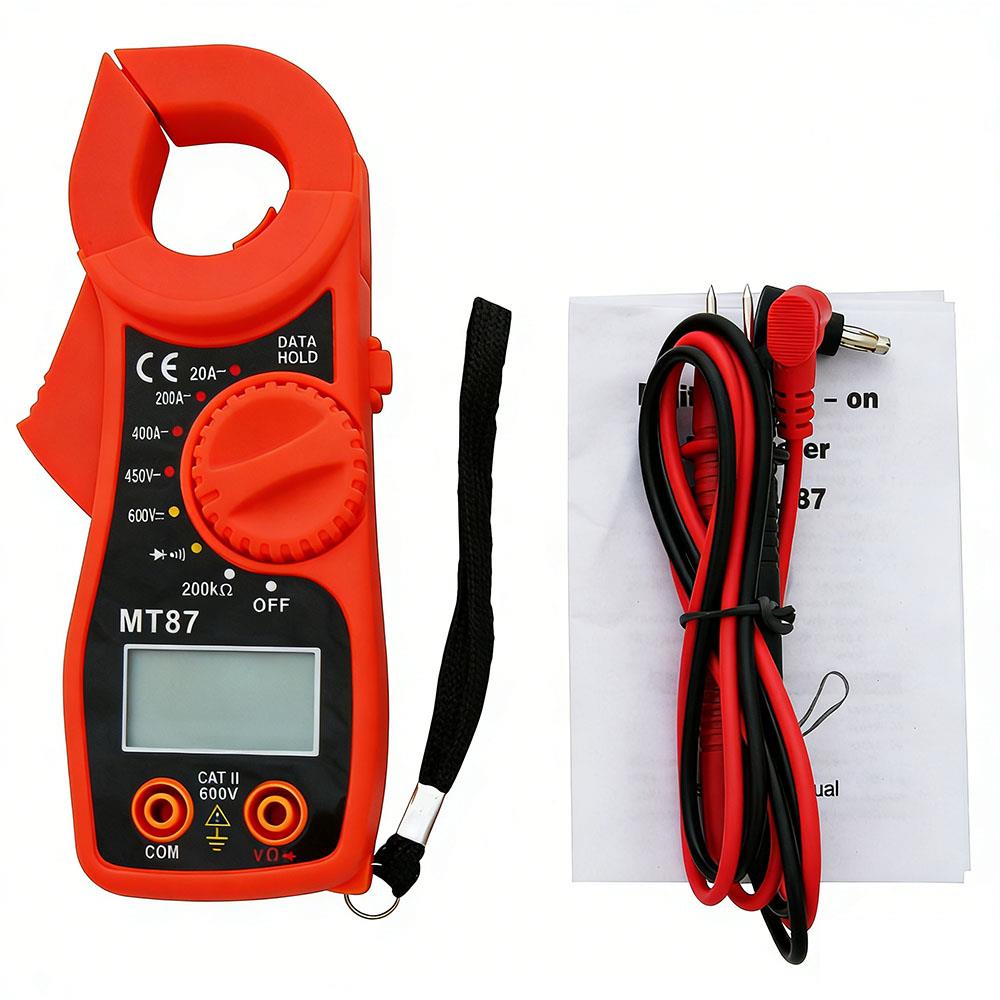

| Standard Accessories | meter (with battery), holster, test lead, manual |
Applications
- AC current measurement without interrupting the circuit
- Industrial motor, drive and compressor maintenance
- Power distribution panel and load monitoring
- HVAC and refrigeration system checks
Docs & Software
Packaging
Packing: color box Packing quantity:100PCS/CTN Carton size: 48.5 X 35 X 34.5CM G.W. / N.W.: 19.6/18.3KG
