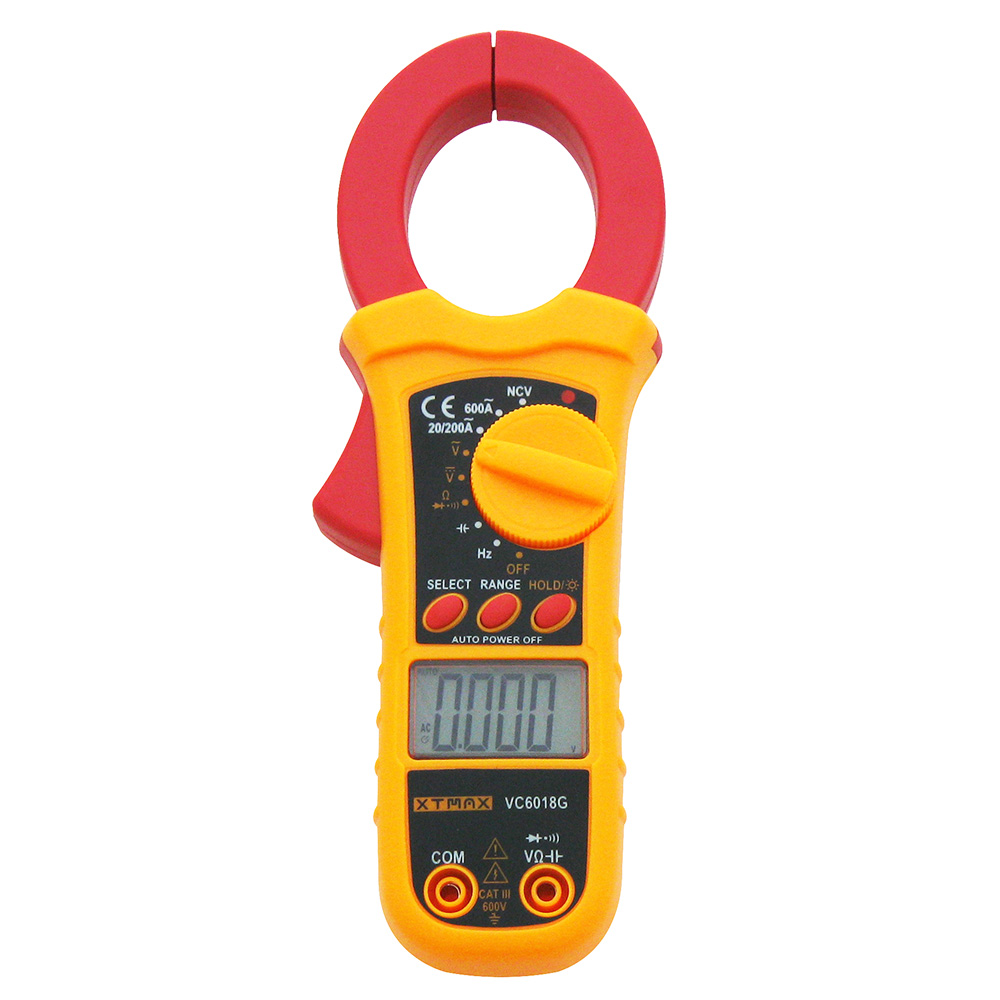

VC6018G Digital Clamp Meter
AC current measurement without interrupting the circuit
VC6018G
- DCV: 400mV~600V u00b11.8%
- ACV: 4V~600V u00b12.0%
- Resistance: 400u03a9~40Mu03a9 u00b11.2%
Features
- 4000-count display with high resolution
- Backlit LCD for clear reading in low light
- Auto power off to save battery life
- Non-contact voltage (NCV) detection for safety
- Diode test function
- Continuity buzzer for fast open/short checks
- Capacitance measurement
- Low battery indication
- Overload protection on all ranges

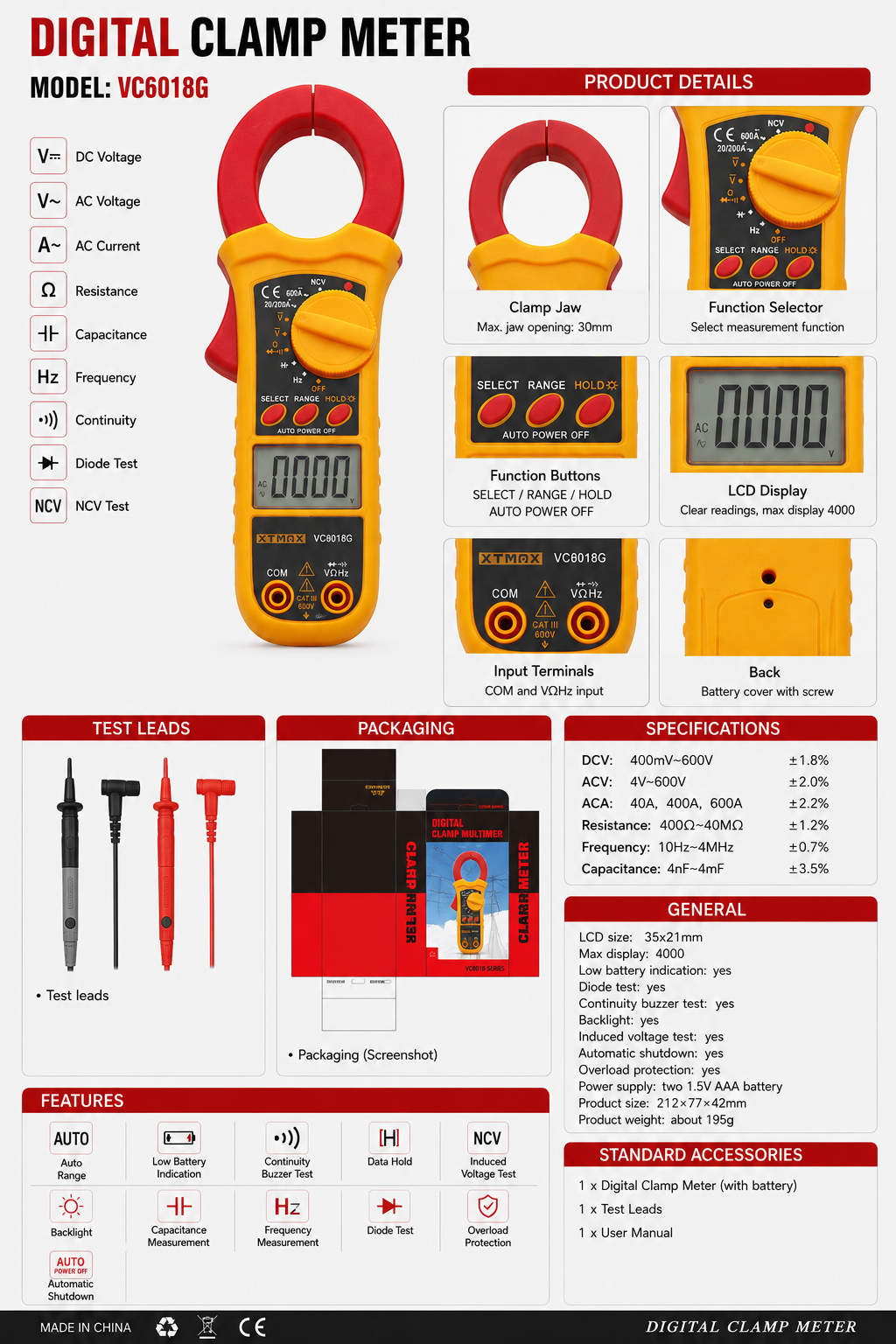

Specifications
| Function | VC6018G |
|---|---|
| DCV | 400mV~600V u00b11.8% |
| ACV | 4V~600V u00b12.0% |
| ACA | 40Auff0c400Auff0c600A u00b12.2% |
| Resistance | 400u03a9~40Mu03a9 u00b11.2% |
| Frequency | 10Hz~4MHz u00b10.7% |
| Capacitance | 4nF~4mF u00b13.5% |
| LCD Size | 35x21mm |
| MAX Display | 4000 |
| Low Battery Indication | yes |
| Diode Test | yes |
| Continuity Buzzer Test | yes |
| Backlight | yes |
| Overload Protection | yes |
| Power Supply | tow 1.5V AAA battery |
| Product Size | 212u00d777u00d742mmu3000 |
| Product Weight | about 195g |

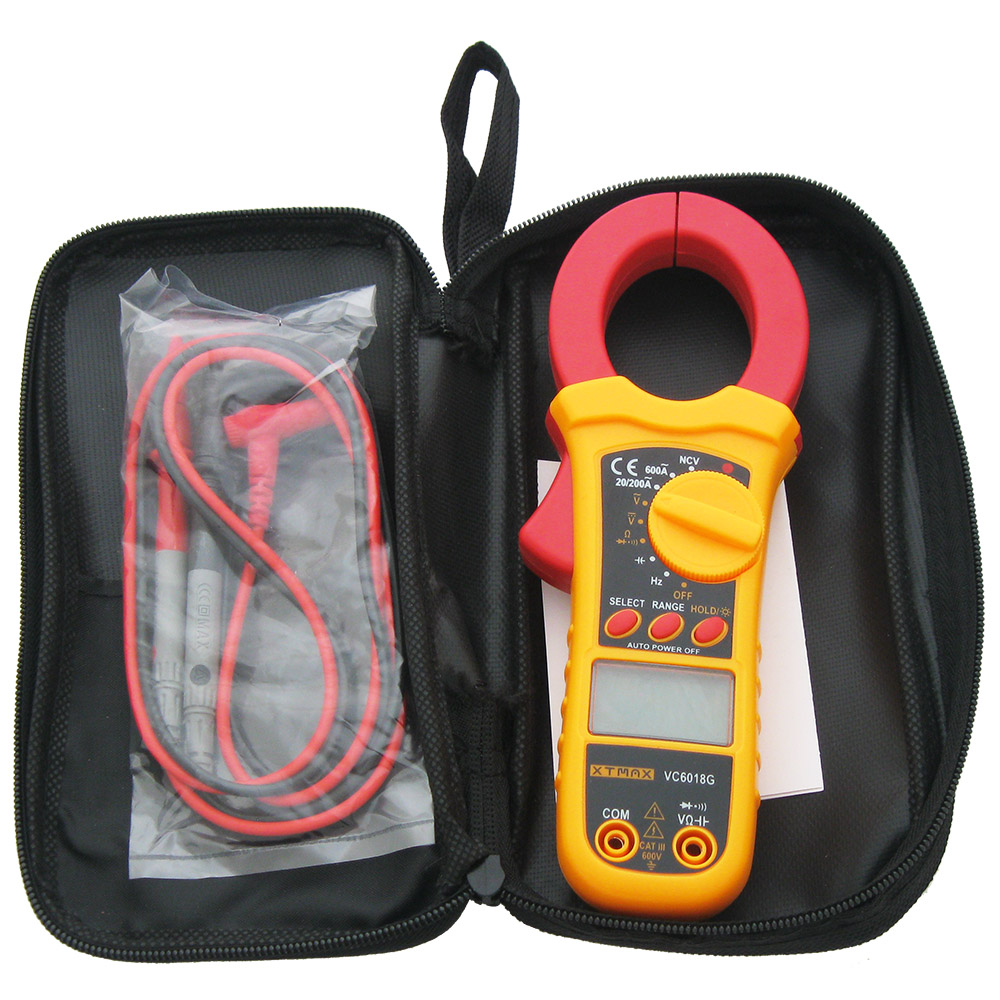

| Standard Accessories | meter (with battery), manual |
Applications
- AC current measurement without interrupting the circuit
- Industrial motor, drive and compressor maintenance
- Power distribution panel and load monitoring
- HVAC and refrigeration system checks
- Frequency and motor speed verification on variable-frequency drives
Docs & Software
Packaging
Packing: Blister box Packing quantity: 40PCS/CTN Carton size: 63X39X67CM G.W. / N.W.: 21/20KG
