VC9805 Digital Multimeter
Electrical installation and troubleshooting in residential and commercial wiring
VC9805
- DCV: 400m-4-40-400-1000V u00b11.5%
- ACV: 400m-4-40-400-750V u00b11.8%
- Resistance: 400-4k-40k-400k-4M-40M-400Mu03a9 u00b15.0% Capacitance:40nF-400nF-4uF-40uF-400uF u00b15.0%
Features
- 4000-count display with high resolution
- Backlit LCD for clear reading in low light
- Data hold to freeze readings
- Auto power off to save battery life
- Non-contact voltage (NCV) detection for safety
- Diode test function
- Continuity buzzer for fast open/short checks
- Transistor (hFE) gain test
- Capacitance measurement
- Low battery indication
- Overload protection on all ranges
Specifications
| Function | VC9805 |
|---|---|
| DCV | 400m-4-40-400-1000V u00b11.5% |
| ACV | 400m-4-40-400-750V u00b11.8% |
| DCA | 4m-40m-400m-10A u00b12.0% |
| ACA | 400m-10A u00b13.5% |
| Resistance | 400-4k-40k-400k-4M-40M-400Mu03a9 u00b15.0% Capacitance:40nF-400nF-4uF-40uF-400uF u00b15.0% |
| LCD Size | 60x46mm |
| MAX Display | 4000 |
| Low Battery Indication | yes |
| Overload Protection | yes |
| Diode Test | yes |
| Transistor Test | yes |
| Continuity Buzzer Test | yes |
| Data Hold | yes |
| Backlight | yes |
| Power Supply | one 9V 6F22 batter |
| Product Size | 185x85x39mm |
| Product Weight | about 270g (with holster) |

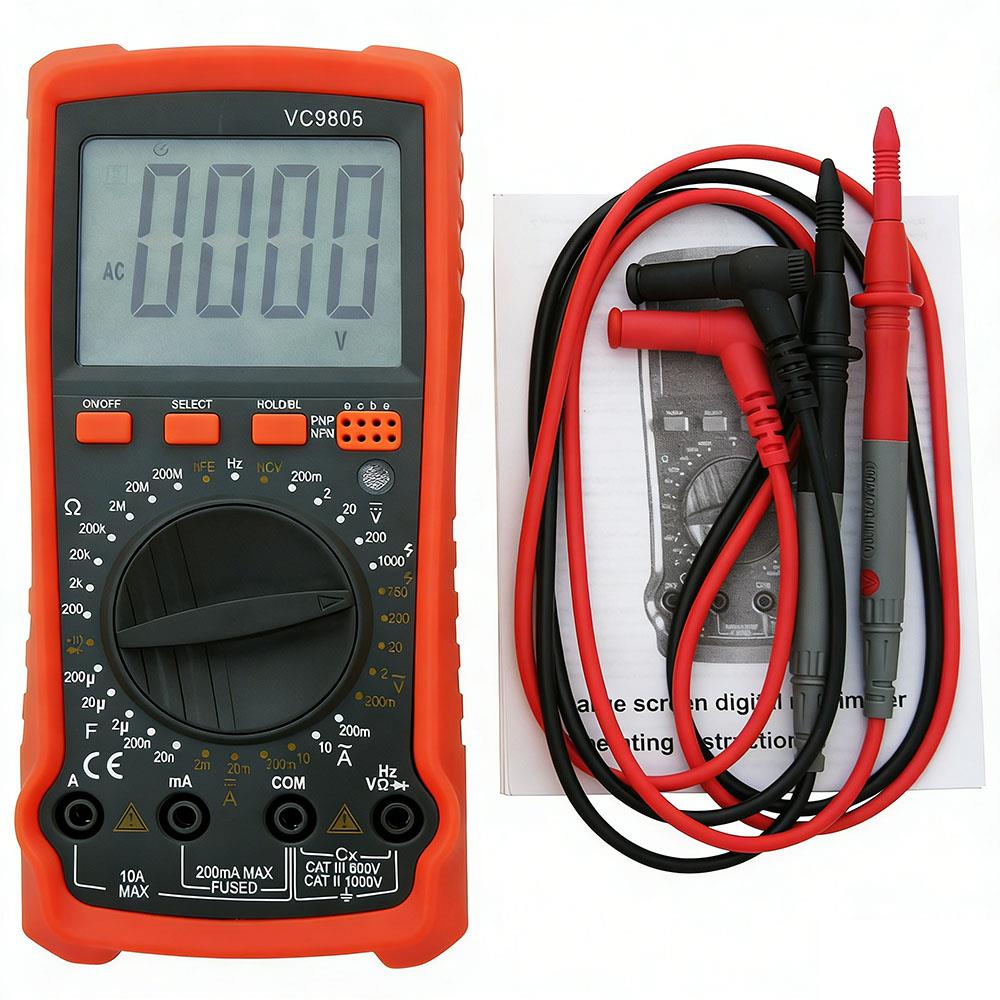

| Standard Accessories | meter (with battery), holster, test lead, thermocouple, manual |
Applications
- Electrical installation and troubleshooting in residential and commercial wiring
- Electronics repair and circuit board diagnostics
- Appliance and motor fault finding
- Educational and laboratory use
- Non-contact live wire tracing for added safety
Docs & Software

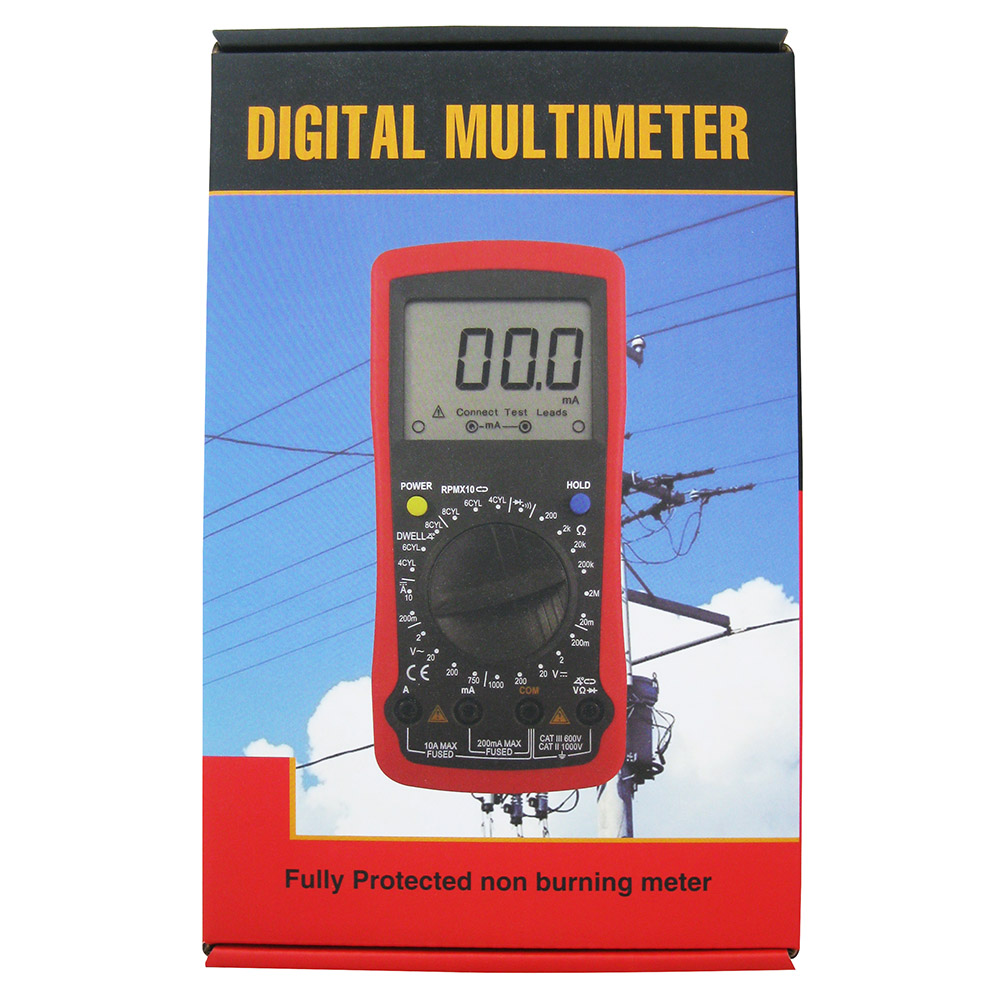

Packaging
Packing: color box Packing quantity: 40PCS/CTN Carton size: 56X32 X 53 CM G.W. / N.W.: 19/18KG
