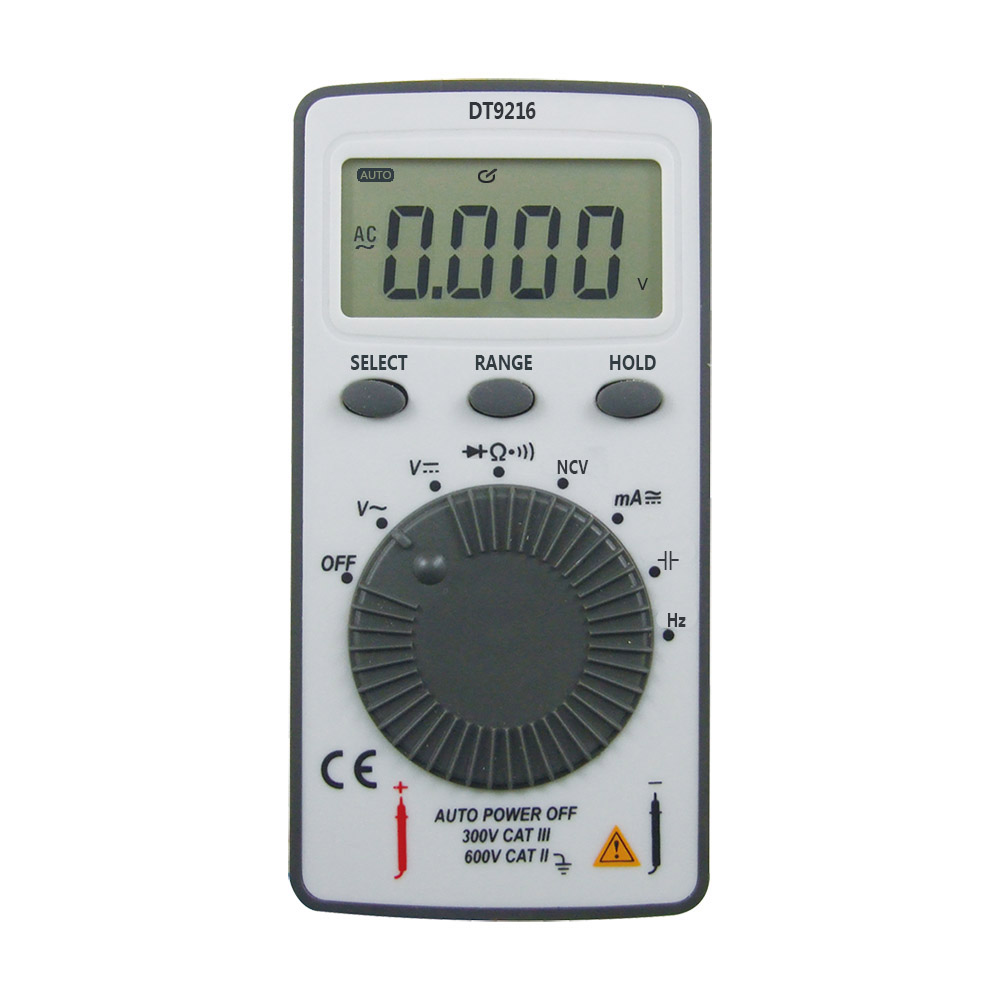

DT9216 Digital Multimeter
Electrical installation and troubleshooting in residential and commercial wiring
DT9216
- DCV: 400m-4-40-400-600V u00b10.9%
- ACV: 4-40-400-600V u00b11%
- Resistance: 400-4k-40k-400k-4M-40M OHM u00b12.5% Capacitance:4nF-40nF-400nF-4uF-40uF-400uF-4mF u00b14%
Features
- 1999-count (3u00bd-digit) LCD display
- Data hold to freeze readings
- Non-contact voltage (NCV) detection for safety
- Diode test function
- Continuity buzzer for fast open/short checks
- Capacitance measurement
- Low battery indication
- Overload protection on all ranges
Specifications
| Function | DT9216 |
|---|---|
| DCV | 400m-4-40-400-600V u00b10.9% |
| ACV | 4-40-400-600V u00b11% |
| DCA | 40m-400mA u00b12% |
| ACA | 40m-400mA u00b12.5% |
| Resistance | 400-4k-40k-400k-4M-40M OHM u00b12.5% Capacitance:4nF-40nF-400nF-4uF-40uF-400uF-4mF u00b14% |
| LCD Size | 58x30mm |
| MAX Display | 1999 |
| Low Battery Indication | yes |
| Overload Protection | yes |
| Diode Test | yes |
| Continuity Buzzer Test | yes |
| Data Hold | yes |
| Power Supply | one 3V CR2032 batter |
| Product Size | 110x55x14mm |
| Product Weight | about 50g (with holster) |

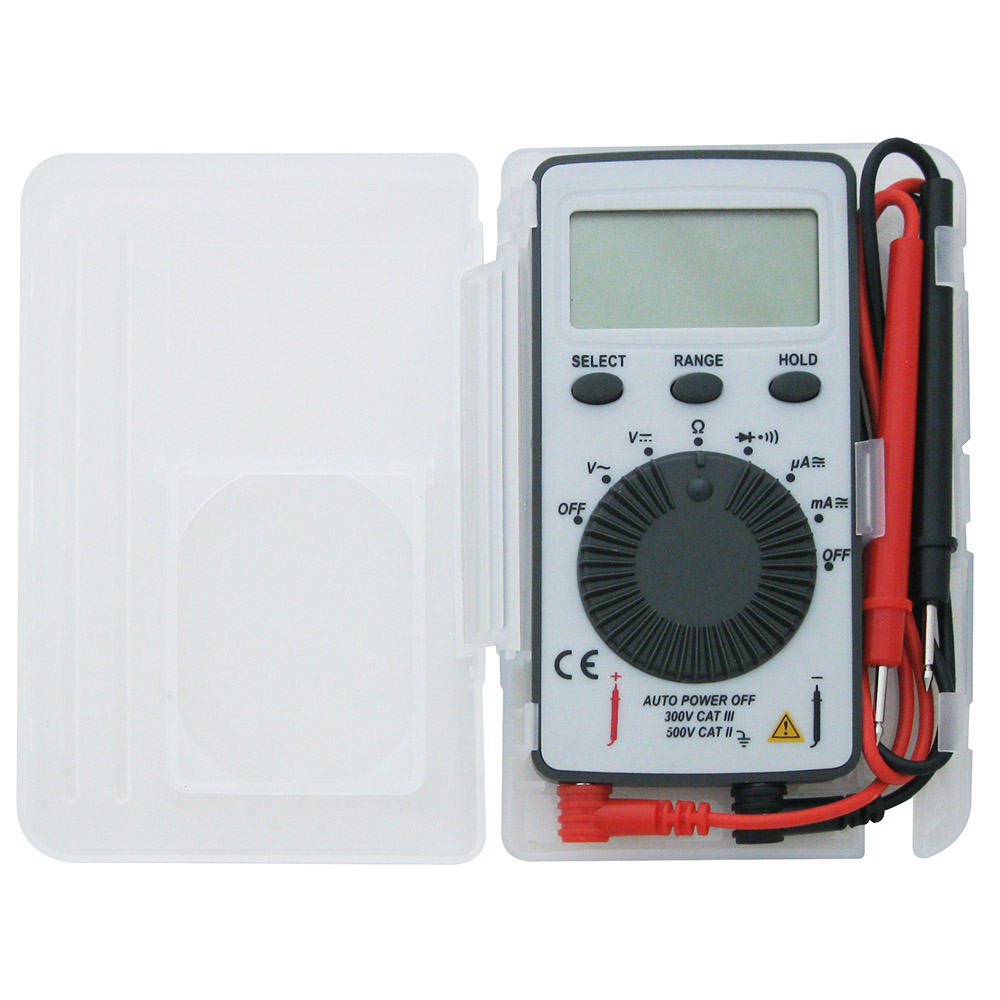

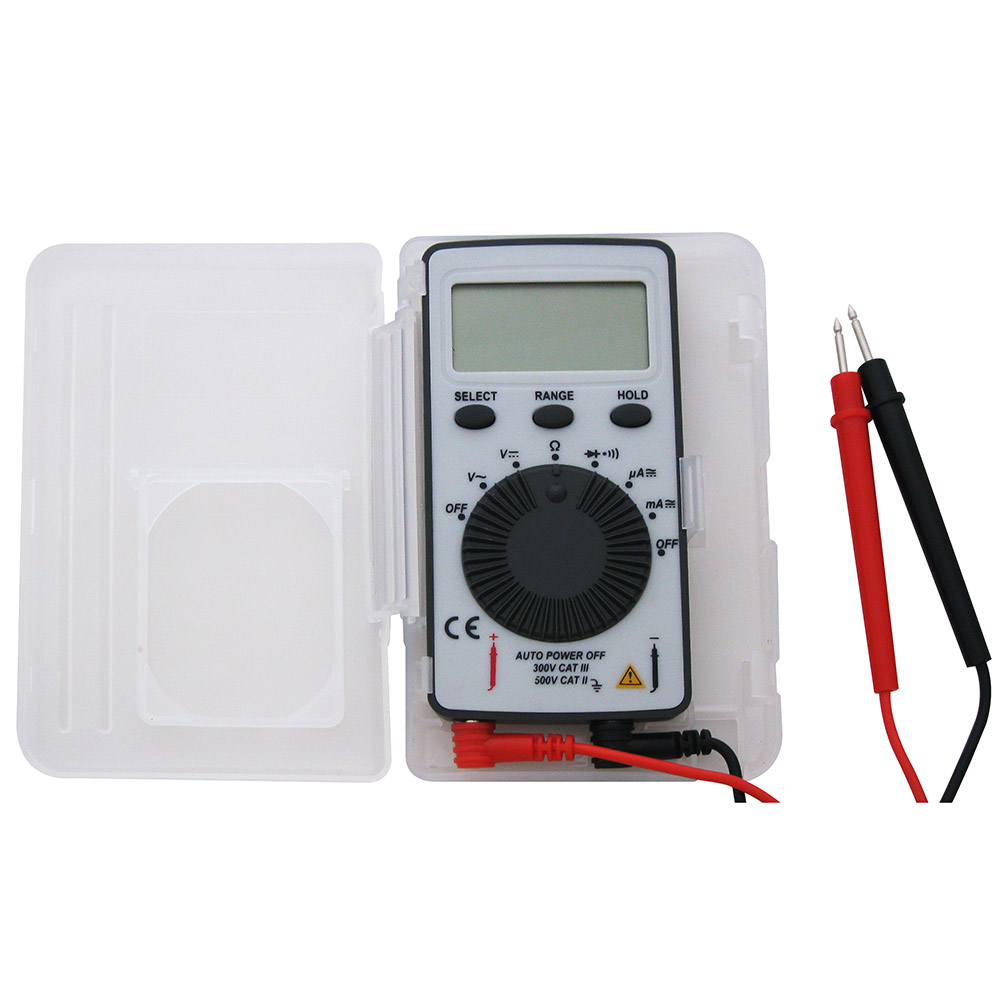

| Standard Accessories | meter (with battery), holster, test lead, thermocouple, manual |
Applications
- Electrical installation and troubleshooting in residential and commercial wiring
- Electronics repair and circuit board diagnostics
- Appliance and motor fault finding
- Educational and laboratory use
- Non-contact live wire tracing for added safety
Docs & Software
Packaging
Packing: color box Packing quantity: 100PCS/CTN Carton size: 48x23x31CM G.W. / N.W.: 12.5/11.5KG
