VC9808 Digital Multimeter

Electrical installation and troubleshooting in residential and commercial wiring

VC9808

  • DCV: 400m-4-40-400-2000V ±2.5%
  • ACV: 4-40-400-2000V ±3.5%
  • Resistance: 400-4k-40k-400k-4M-40M-400M Ω ±5.0% Capacitance:40nF-400nF-4uF-40uF-400uF ±5.0%

Features

  • 4000-count display with high resolution
  • Orange holster around a black front panel
  • Three yellow buttons across the panel, labelled POWER, SELECT and AC/DC
  • Orange 8-hole transistor socket at the top right, labelled PNP / NPN
  • Round knurled NCV sensing badge on the panel
  • Temperature range -20°C to 1000°C (-4°F to 1832°F), read with the type-K thermocouple supplied in the box
  • Jack row runs 10A / mA / COM / VΩHz
  • Backlit LCD, auto power off and data hold
  • Diode test function and continuity buzzer
  • Low battery indication and overload protection on all ranges

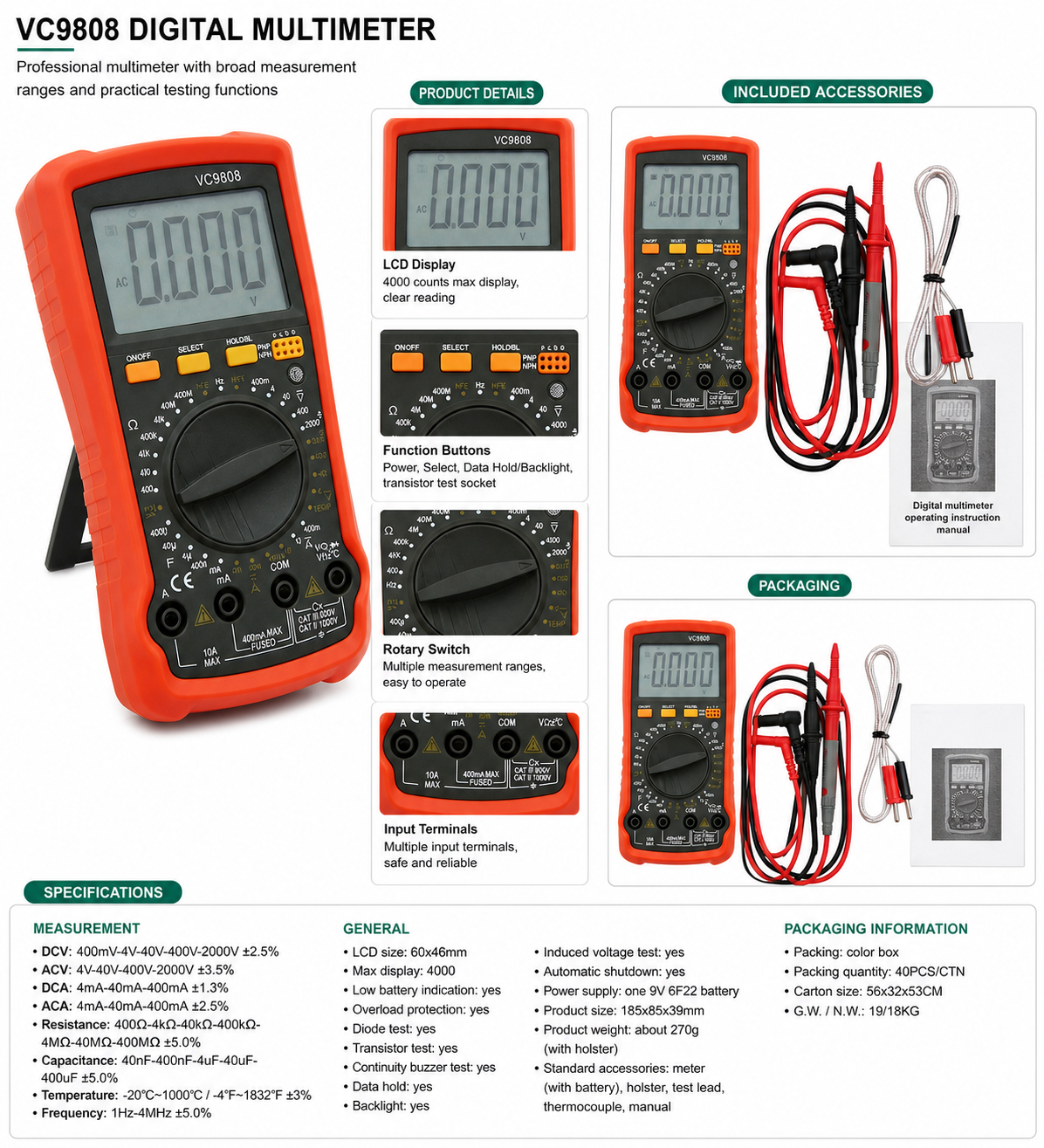

Specifications

Function VC9808
DCV 400m-4-40-400-2000V ±2.5%
ACV 4-40-400-2000V ±3.5%
DCA 4m-40m-400mA ±1.3%
ACA 4m-40m-400mA ±2.5%
Resistance 400-4k-40k-400k-4M-40M-400M Ω ±5.0% Capacitance:40nF-400nF-4uF-40uF-400uF ±5.0%
Temperature -20°C~1000°C/-4°F~1832°F ±3%
LCD Size 60x46mm
MAX Display 4000
Low Battery Indication yes
Overload Protection yes
Diode Test yes
Transistor Test yes
Continuity Buzzer Test yes
Data Hold yes
Backlight yes
Power Supply one 9V 6F22 batter
Product Size 185x85x39mm
Product Weight about 270g (with holster)

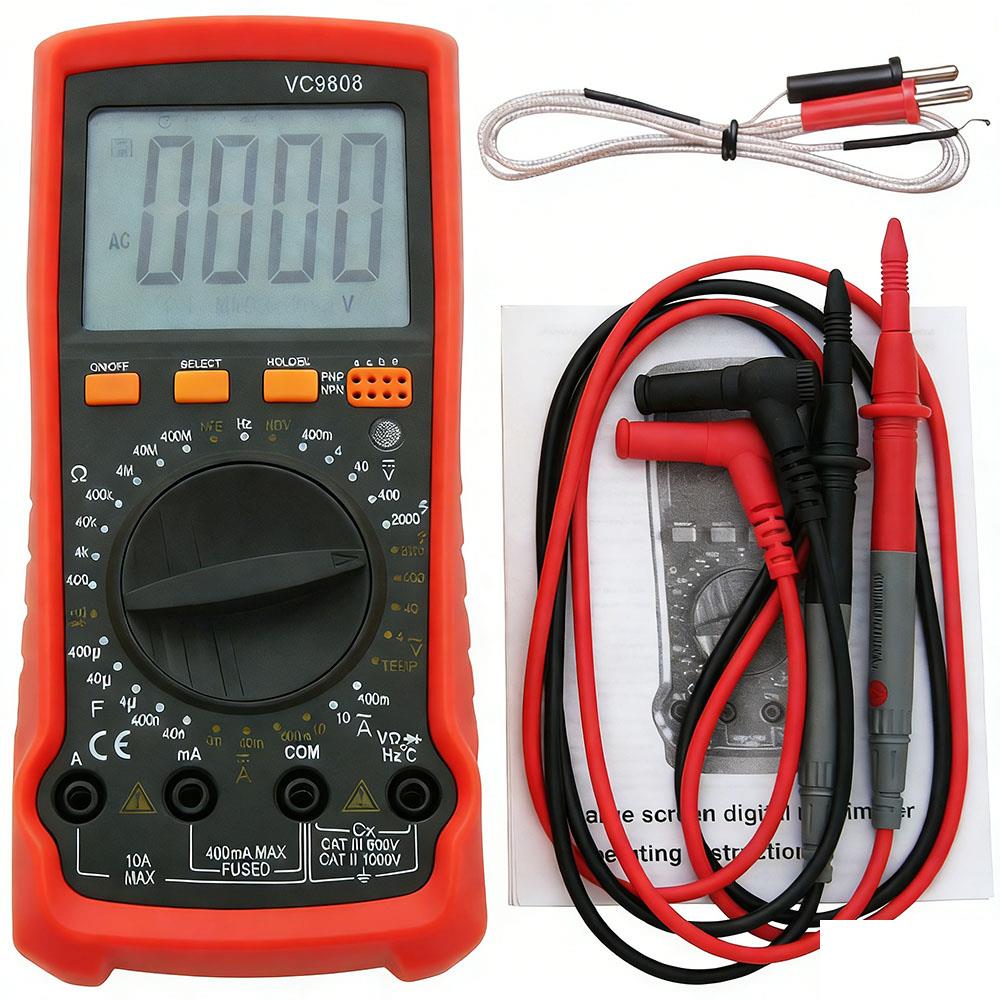

Standard Accessories meter (with battery), holster, test lead, thermocouple, manual

Applications

  • Electrical installation and troubleshooting in residential and commercial wiring
  • Temperature checks on motors, bearings and cable terminations with the supplied type-K probe
  • NCV lets you check a conductor is dead before putting the probes on it

Docs & Software

Packaging

Packing: color box Packing quantity: 40PCS/CTN Carton size: 56X32 X 53 CM G.W. / N.W.: 19/18KG

Product Details

FAQs

What makes a professional digital multimeter different from a basic one?

Professional models offer higher accuracy (up to 6000 counts), wider ranges, true-RMS AC measurement and more functions such as frequency and capacitance — built for demanding jobs.

What is a 6000-count multimeter?

A 6000-count display shows readings up to 5999, which means better resolution than a 2000-count meter — especially useful for detecting small voltage and current changes.

Do professional multimeters have true RMS?

Many of our professional models support true-RMS AC measurement, which gives accurate readings on non-sine wave signals found in modern equipment.

Are your professional multimeters certified for industrial use?

They are built to industrial standards with CE/RoHS compliance and safety-rated inputs. See each model's specifications for the exact safety and accuracy ratings.

I sell to home DIY users and professional electricians. Which multimeter models should I stock in one order?

For home and DIY demand, stock DT700 and MY62 as your entry-priced models. For electricians and industrial maintenance, add DT9205A, DT9208A, MY64, and VC890 to the mix. If your market also includes panel or precision work, VC9805 and VC9808 give you a higher-tier option. Tell us your customer segment and we will recommend a stock mix for the professional DMM line.

Can I mix several multimeter models in one container, and is there a minimum per model?

Yes, we allow mixed-assortment containers across the professional DMM line, for example DT9208A, DT9216, and VC17B+ in one shipment. Each model has its own wholesale MOQ, so confirm the per-model minimum with our sales team when you send the order. Stock models ship faster than made-to-order quantities, so lead time depends on which models you mix.

Can you print my brand on the multimeters and pack them in plain bulk boxes?

Yes, as the factory in Wenzhou we print your brand on the housing and on the box for the DT, MY, and VC series meters, including DM9205A, MY64, and VC9805. You can choose color box or plain bulk packing; bulk pack cuts freight and unit cost for container orders. Provide your artwork and packaging format when you place the order, and we will confirm before production.

Which models in this line carry CE and RoHS, and can you provide the test reports?

The professional DMM line, including DM9205A, DT700, DT9205A, DT9208A, DT9216, MY62, MY64, VC17B+, VC890, VC9805, and VC9808, is produced to meet CE and RoHS requirements. We provide the test reports and certificates for the specific models in your order. Send us your model list and we will confirm the documentation before you place the order.

What is the minimum order quantity for wholesale?

We serve both small trial orders and container-scale wholesale. Tell us the models and quantity you need, and our sales team will reply with pricing and lead time within 24 hours.

Do you support OEM/ODM with our own brand?

Yes. As a factory founded in 2008, we offer OEM/ODM services including custom labels, packaging and adjustable measuring ranges. Send us your specifications and we will handle the rest.

What certifications do your instruments have?

Our instruments are CE, RoHS and ISO 9001 compliant, and we can provide the relevant certificates on request.

What is your warranty?

Every instrument ships with a 12-month warranty. If a unit is defective, contact us and we will arrange a replacement or repair.

How do you ship orders, and what is the lead time?

Orders ship from our factory in Wenzhou, and we can arrange FOB Wenzhou or FOB Ningbo, whichever suits your freight forwarder best. For sea freight we pack into cartons and pallets sized for a 20ft or 40ft container, and for small or urgent orders we ship by air or express. In-stock catalog models ship within 3 to 7 days after payment, while OEM orders with custom branding take 15 to 30 days depending on the work.

What are your payment terms?

For bulk orders we work on T/T bank transfer with a 30% deposit to confirm production and the 70% balance before shipment. For larger amounts we also accept L/C at sight. For sample orders we take PayPal or full T/T in advance, so your first test order stays simple.

Can I get samples to evaluate before ordering in bulk?

Yes, we encourage a sample order before you commit to bulk, so you can check build quality and calibration yourself. Samples are sent by express and usually arrive within 3 to 7 working days, and we refund the sample cost from your first bulk order of the same model. Just send us the models you want through the contact form or email, and we will quote the sample and ship on payment.

What export documents do you provide for customs clearance?

We provide a commercial invoice, packing list and certificate of origin with every shipment, plus CE and RoHS certificates and test reports when needed. Our export team prepares the documents to match your country's customs requirements and can amend them if your forwarder requests changes. The documents are sent by email ahead of the goods, so clearance at your port is not delayed.
