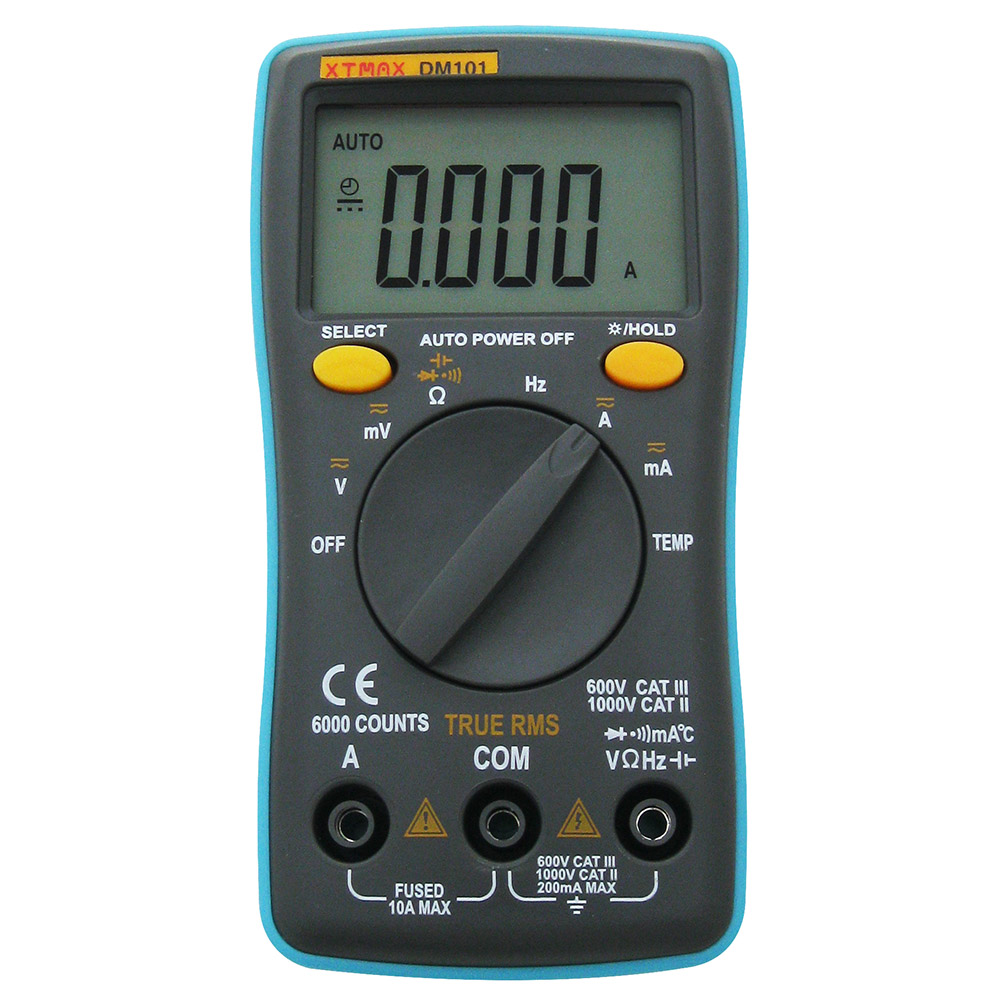

DM101 Digital Multimeter
Electrical installation and troubleshooting in residential and commercial wiring
DM101
- DCV: 600m-6-60-600-1000V u00b10.8%
- ACV: 600m-6-60-600-750V u00b11.3%
- Resistance: 600-6k-60k-600k-6M-60Mu03a9 u00b11.8% DCA:60mA-200mA-6A-10A u00b11.5%
Features
- Backlit LCD for clear reading in low light
- Data hold to freeze readings
- Auto power off to save battery life
- Diode test function
- Continuity buzzer for fast open/short checks
- Capacitance measurement
- Low battery indication
- Overload protection on all ranges

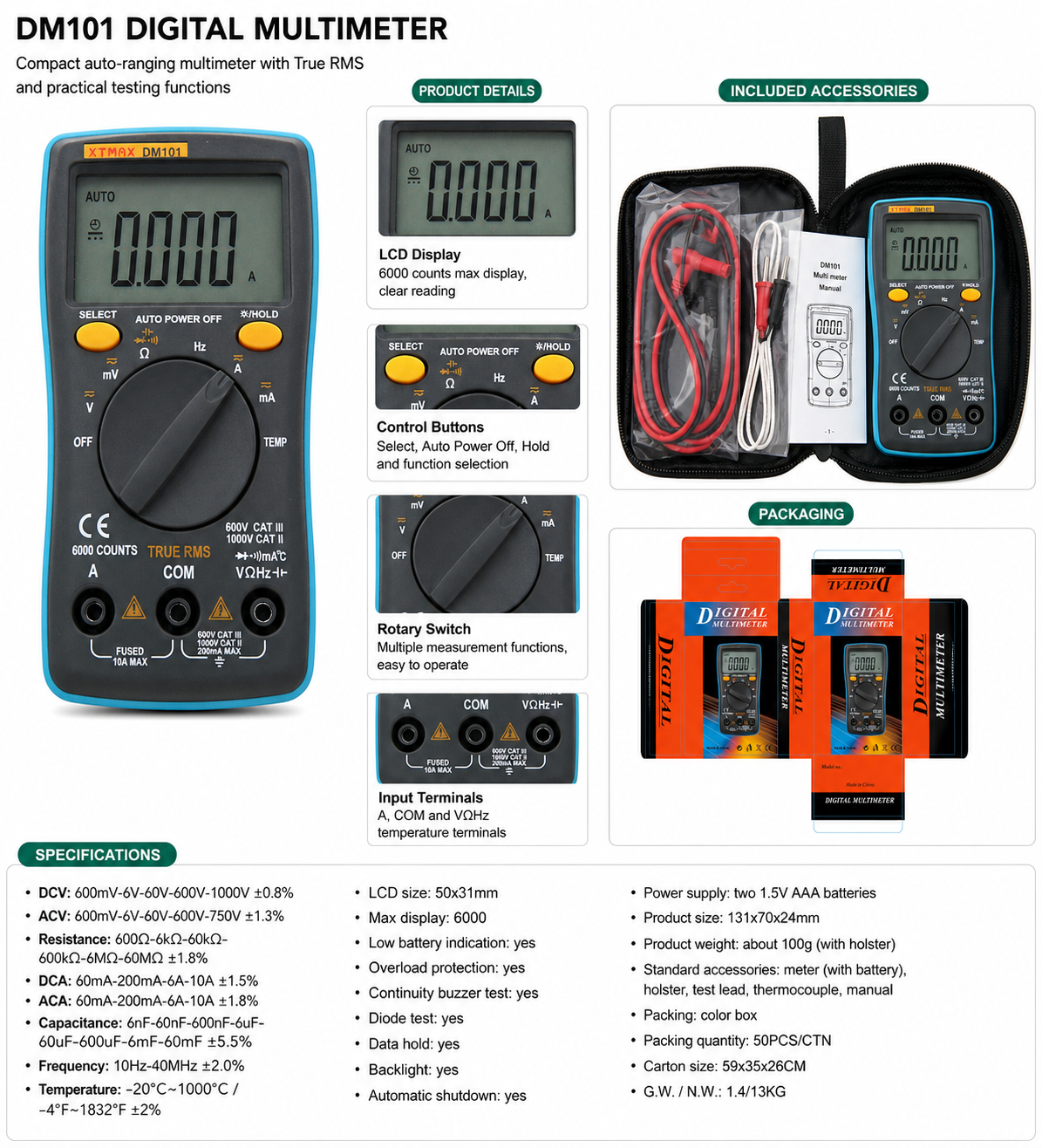

Specifications
| Function | DM101 |
|---|---|
| DCV | 600m-6-60-600-1000V u00b10.8% |
| ACV | 600m-6-60-600-750V u00b11.3% |
| Resistance | 600-6k-60k-600k-6M-60Mu03a9 u00b11.8% DCA:60mA-200mA-6A-10A u00b11.5% |
| ACA | 60mA-200mA-6A-10A u00b11.8% |
| Capacitance | 6nF-60nF-600nF-6uF-60uF-600uF-6mF -60mF u00b15.5% |
| LCD Size | 50x31mm |
| MAX Display | 6000 |
| Low Battery Indication | yes |
| Overload Protection | yes |
| Continuity Buzzer Test | yes |
| Diode Test | yes |
| Data Hold | yes |
| Backlight | yes |
| Power Supply | Tow 1.5V AAA batter |
| Product Size | 131x70x24mm |
| Product Weight | about 100g (with holster) |

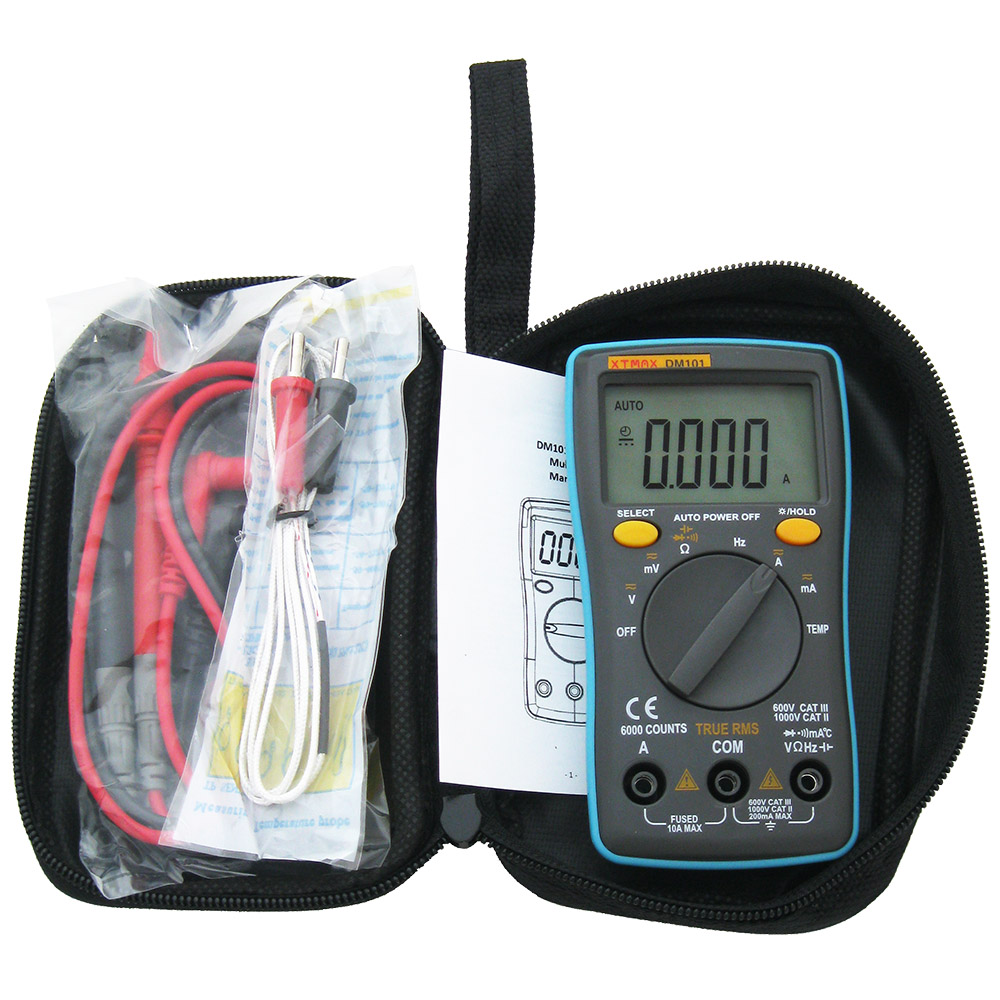

| Standard Accessories | meter (with battery), holster, test lead, manual |
Applications
- Electrical installation and troubleshooting in residential and commercial wiring
- Electronics repair and circuit board diagnostics
- Appliance and motor fault finding
- Educational and laboratory use
Docs & Software
Packaging
Packing: color box Packing quantity: 50PCS/CTN Carton size: 59 X 35 X 26 CM G.W. / N.W.: 1,4/13KG
