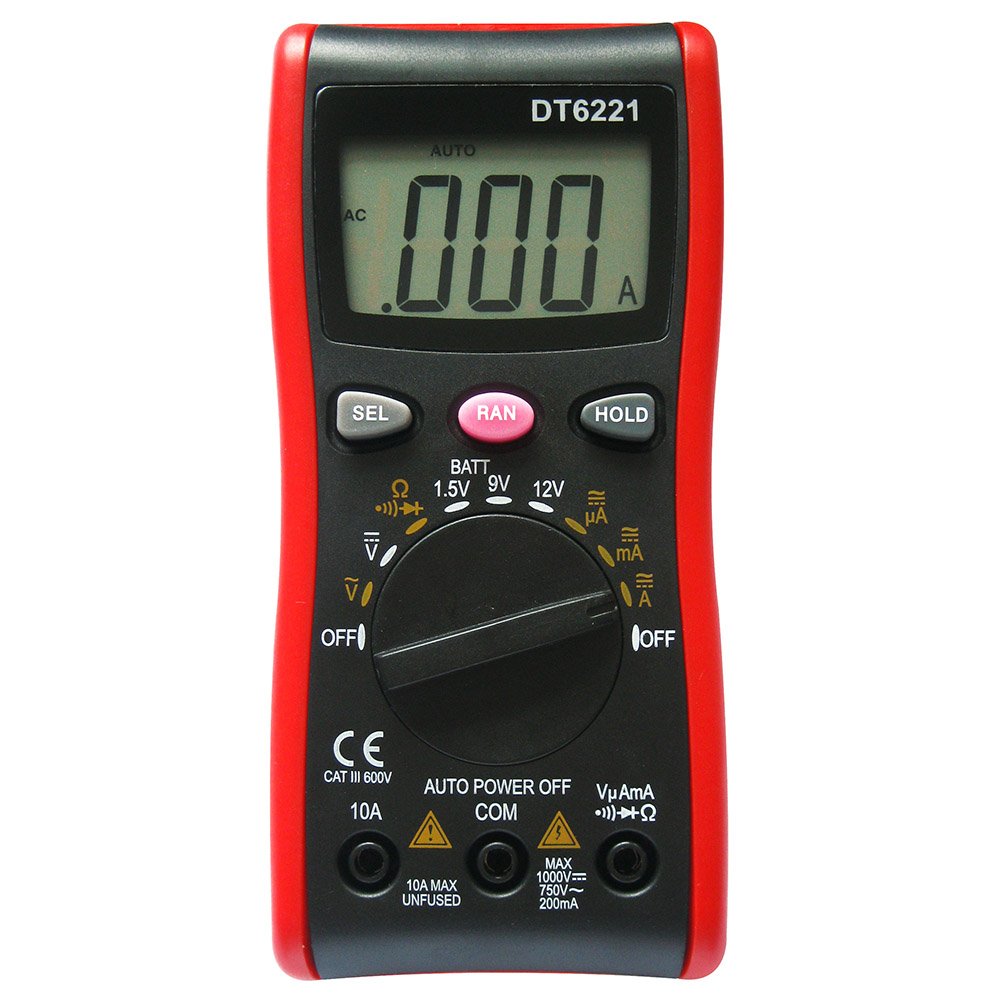

DT6221 Digital Meter
Electrical installation and troubleshooting in residential and commercial wiring
DT6221
- DCV: 400mV~600V u00b11.8%
- ACV: 4V~600V u00b12.0%
- Resistance: 400u03a9~40Mu03a9 u00b11.2%
Features
- 4000-count display with high resolution
- Auto power off to save battery life
- Non-contact voltage (NCV) detection for safety
- Diode test function
- Continuity buzzer for fast open/short checks
- Capacitance measurement
- Low battery indication
- Overload protection on all ranges
Specifications
| Function | DT6221 |
|---|---|
| DCV | 400mV~600V u00b11.8% |
| ACV | 4V~600V u00b12.0% |
| DCA | 400uAuff0c4000uAuff0c40MAuff0c200MA u00b11.4% |
| ACA | 400uAuff0c4000uAuff0c40MAuff0c200MA u00b12.2% |
| Resistance | 400u03a9~40Mu03a9 u00b11.2% |
| Frequency | 10Hz~4MHz u00b10.7% |
| Capacitance | 4nF~4mF u00b13.5% |
| LCD Size | 48x29mm |
| MAX Display | 4000 |
| Low Battery Indication | yes |
| Diode Test | yes |
| Continuity Buzzer Test | yes |
| Overload Protection | yes |
| Power Supply | tow 1.5V AAA battery |
| Product Size | 148u00d771u00d733mmu3000 |
| Product Weight | about 155g |

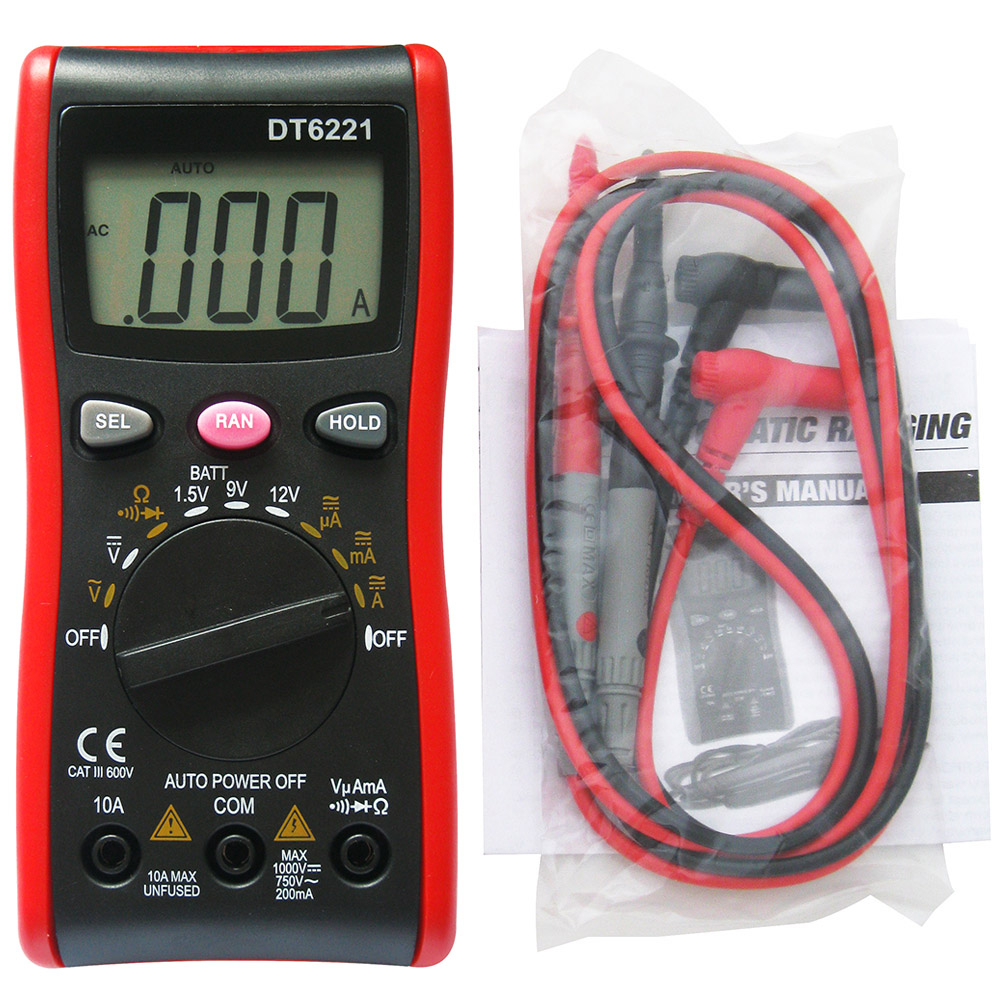

| Standard Accessories | meter (with battery), manual |
Applications
- Electrical installation and troubleshooting in residential and commercial wiring
- Electronics repair and circuit board diagnostics
- Appliance and motor fault finding
- Educational and laboratory use
- Non-contact live wire tracing for added safety
Docs & Software
Packaging
Packing: color box Packing quantity: 60PCS/CTN Carton size: 51.5 X 35.5 X 31.5CM G.W. / N.W.: 17.06/16.38KG
