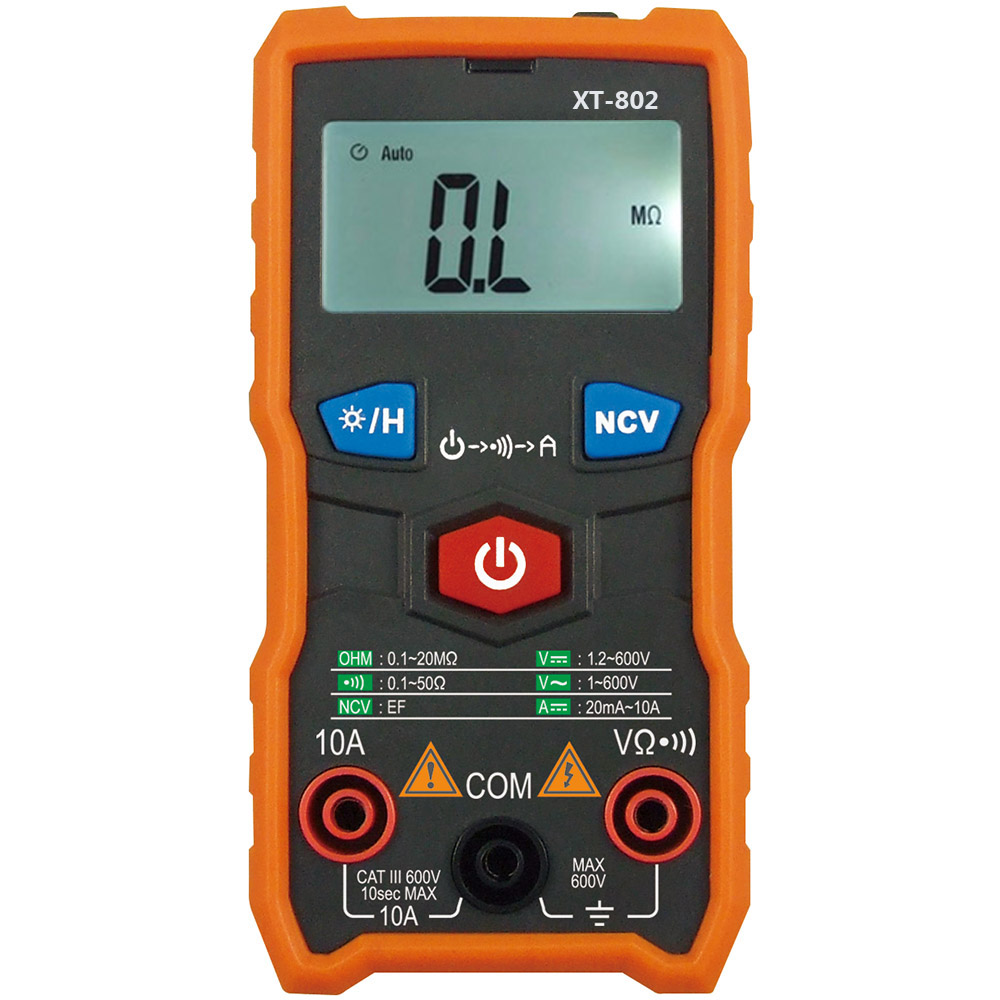

XT802 Digital Multimeter
Accurate DC/AC voltage, current, resistance and continuity measurement for electrical installation and repair. (Model XT802)
XT802
- DCV: 6-60-600V u00b11.3%
- ACV: 6-60-600V u00b11.8%
- Resistance: 600-6k-60k-600k-6M-60Mu03a9 u00b12.0% DCA:2A-10A u00b11.8%
Features
- Accurate measurement of DC/AC voltage and current
- Resistance, continuity and diode testing
- Overload protection and low-battery indication
- Compact hand-held design with backlit display

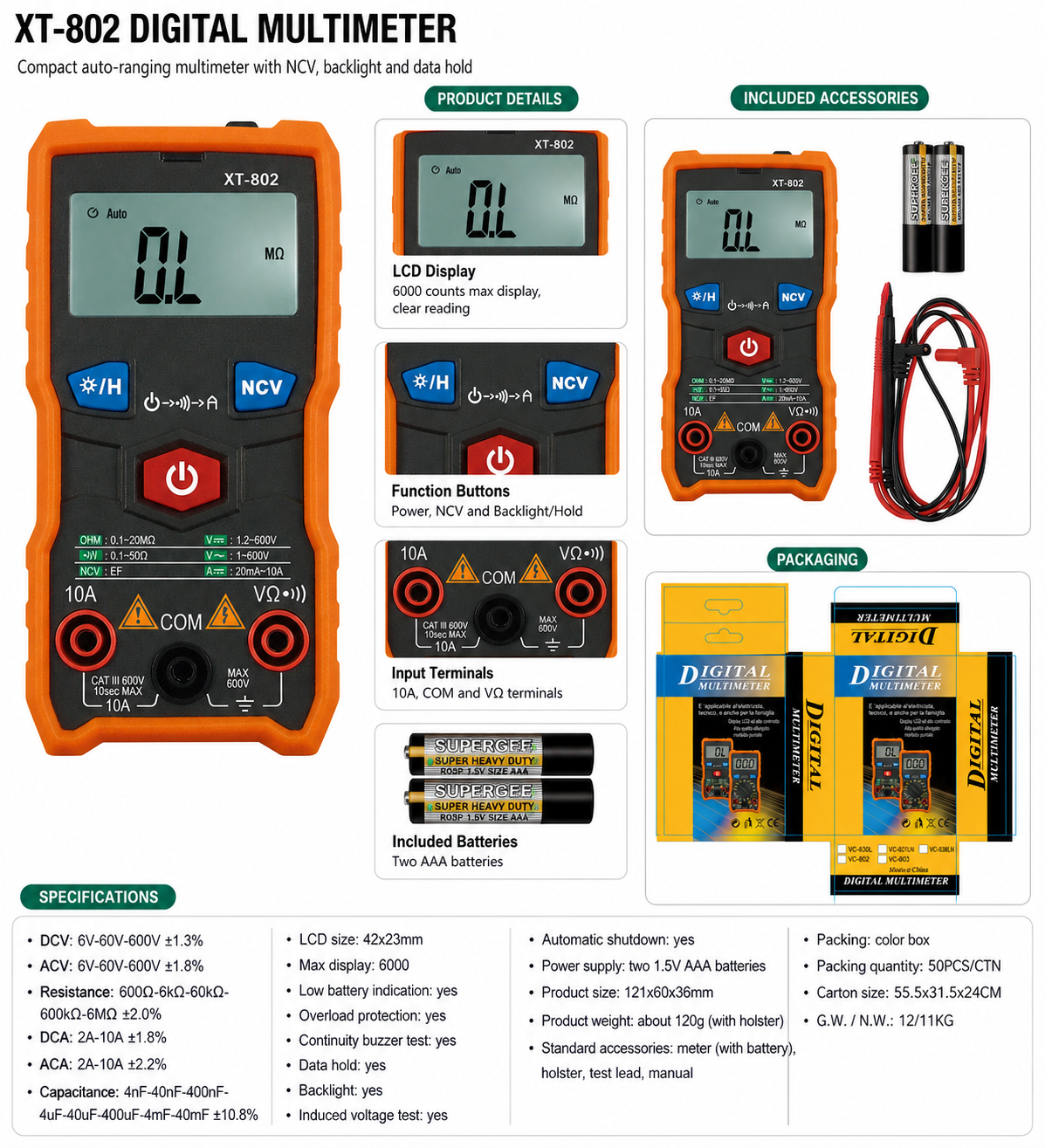

Specifications
| Function | XT802 |
|---|---|
| DCV | 6-60-600V u00b11.3% |
| ACV | 6-60-600V u00b11.8% |
| Resistance | 600-6k-60k-600k-6M-60Mu03a9 u00b12.0% DCA:2A-10A u00b11.8% |
| ACA | 2A-10A u00b12.2% |
| Capacitance | 4nF-40nF-400nF-4uF-40uF-400uF-4mF -40mF u00b110.8% |
| LCD Size | 42x23mm |
| MAX Display | 6000 |
| Low Battery Indication | yes |
| Overload Protection | yes |
| Continuity Buzzer Test | yes |
| Data Hold | yes |
| Backlight | yes |
| Power Supply | Tow 1.5V AAA batter |
| Product Size | 121x60x36mm |
| Product Weight | about 120g (with holster) |

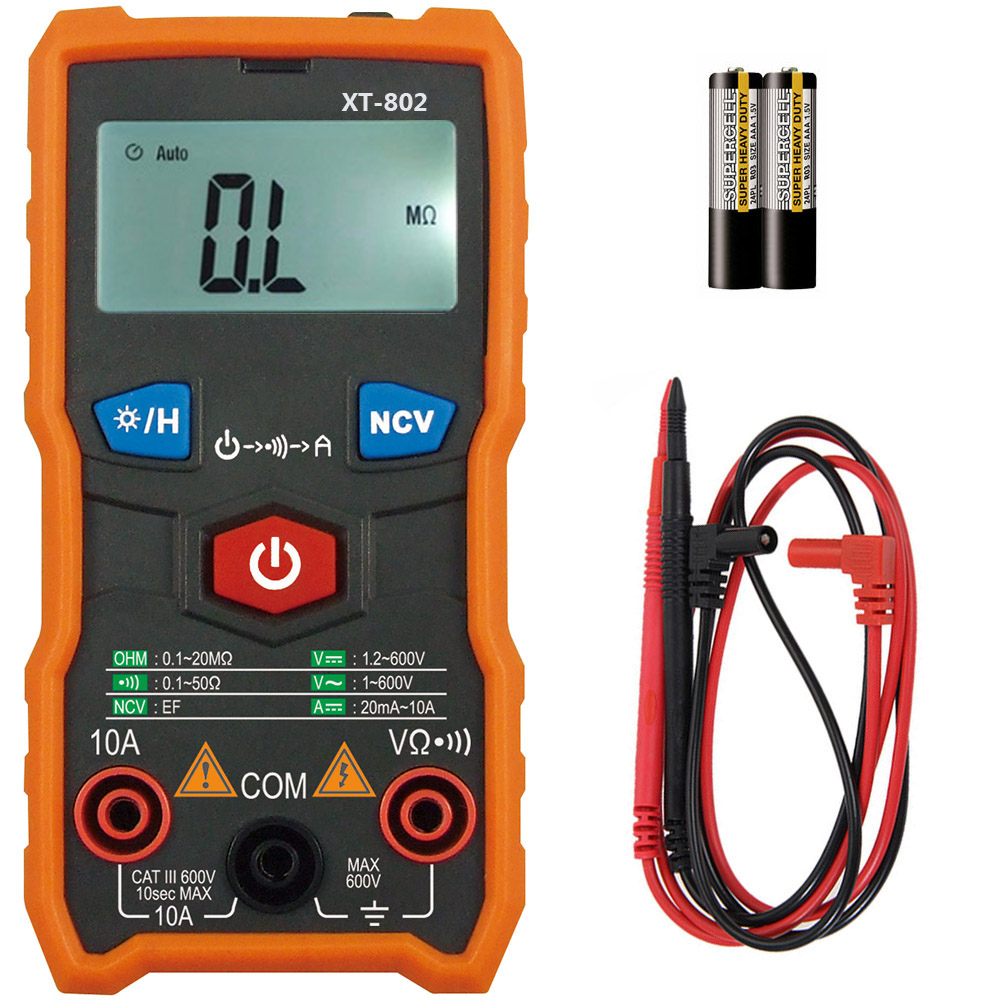

| Standard Accessories | meter (with battery), holster, test lead, manual |
Applications
- Electrical installation and troubleshooting
- Electronics repair and circuit diagnostics
- Appliance and motor fault finding
- Educational and laboratory use
Docs & Software
Packaging
Packing: color box Packing quantity: 50PCS/CTN Carton size: 55.5 X 31.5 X 24 CM G.W. / N.W.: 12/11KG
