DT830 Series
Models in DT830 Series: DT830L, DT832_DT830D, DT830B

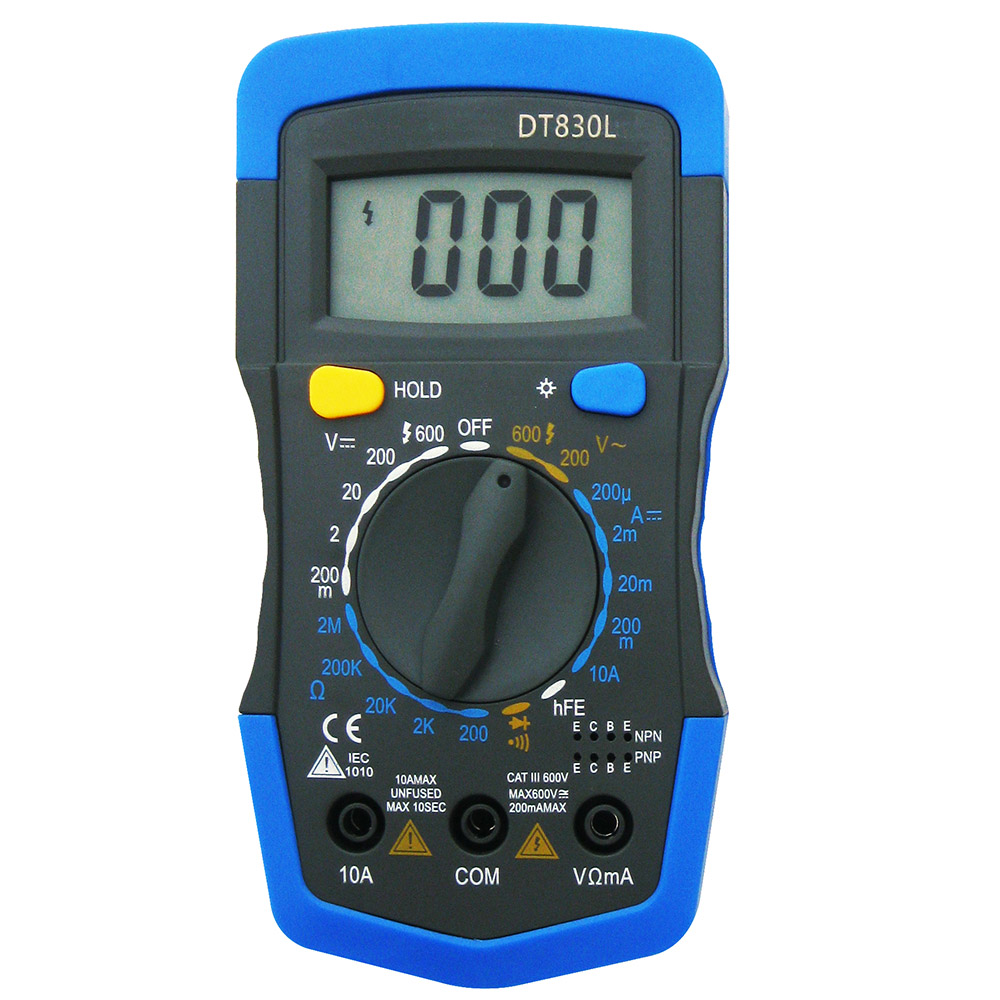

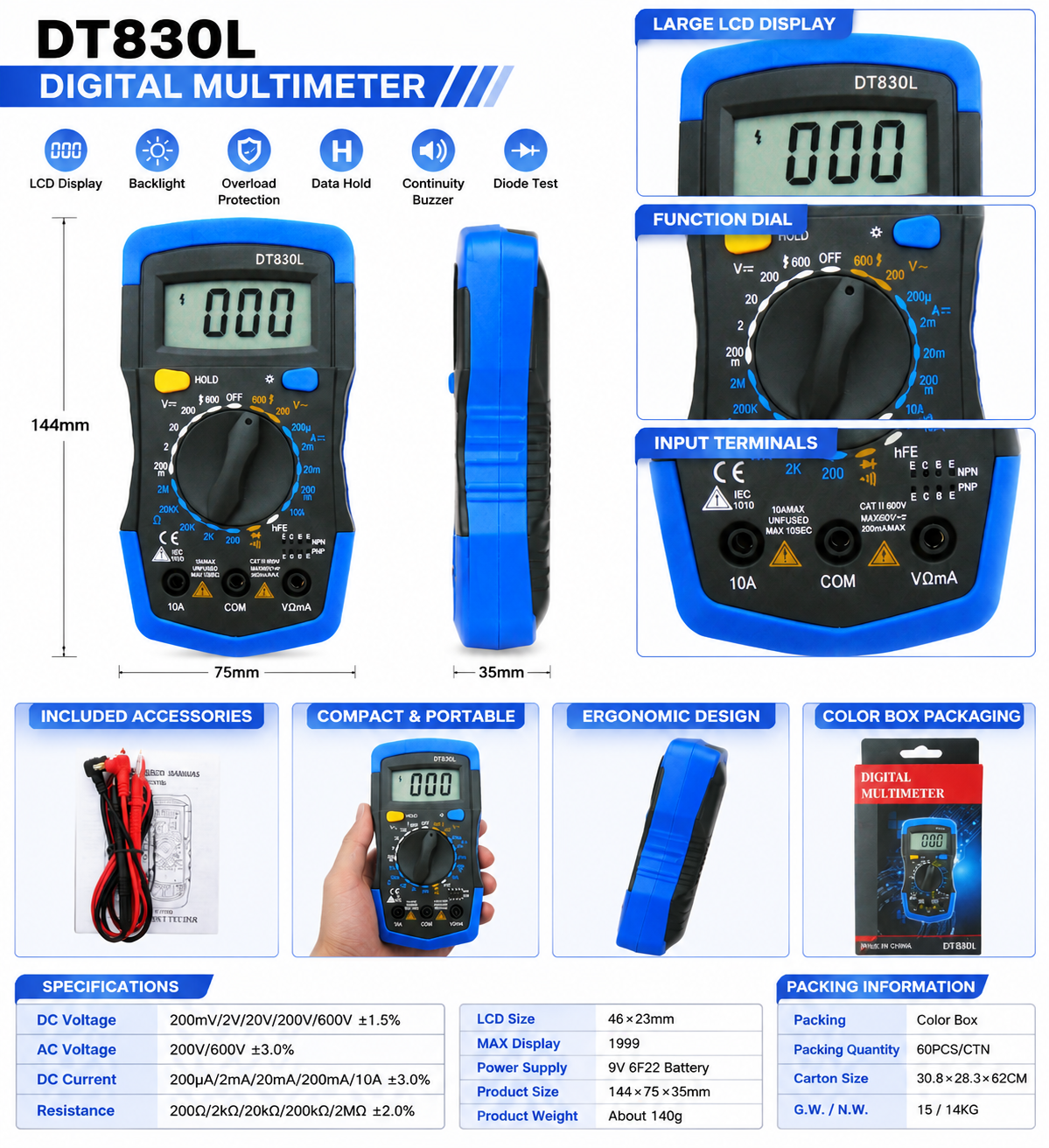

DT830L
- DCV: 200m-2-20-200-600V u00b11.5%
- ACV: 200-600V u00b13.0%
- Resistance: 200-2k-20k-200k-2Mu03a9 u00b12.0%
Features
- 1999-count (3u00bd-digit) LCD display
- Backlit LCD for clear reading in low light
- Data hold to freeze readings
- Diode test function
- Continuity buzzer for fast open/short checks
- Low battery indication
- Overload protection on all ranges
Specifications
| Function | DT830L | DT832_DT830D | DT830B |
|---|---|---|---|
| DCV | 200m-2-20-200-600V u00b11.5% | 200m-2000m-20-200-1000V u00b10.5% | 200m-2000m-20-200-1000V u00b10.5% |
| ACV | 200-600V u00b13.0% | 200-750V u00b11.0% | 200-750V u00b11.0% |
| DCA | 200u-2m-20m-200m-10A u00b13.0% | 2000u-20m-200m-10A u00b11.8% | 200u-2000u-20m-200m-10A u00b11.8% |
| Resistance | 200-2k-20k-200k-2Mu03a9 u00b12.0% | 200-2000-20K-200K-2000Ku03a9 u00b11.0% | 200-2000-20K-200K-2000Ku03a9 u00b11.0% |
| LCD Size | 46x23mm | 49x16mm | 49x16mm |
| MAX Display | 1999 | 1999 | 1999 |
| Low Battery Indication | yes | yes | yes |
| Overload Protection | yes | yes | yes |
| Diode Test | yes | yes | yes |
| Continuity Buzzer Test | yes | yes | — |
| Data Hold | yes | — | — |
| Backlight | yes | — | — |
| Power Supply | one 9V 6F22 battery | one 9V 6F22 battery | one 9V 6F22 battery |
| Product Size | 144x75x35mm | 124u00d770u00d726mmu3000 | 125x70x29mm |
| Product Weight | about 140g | about 111g | about 108g |

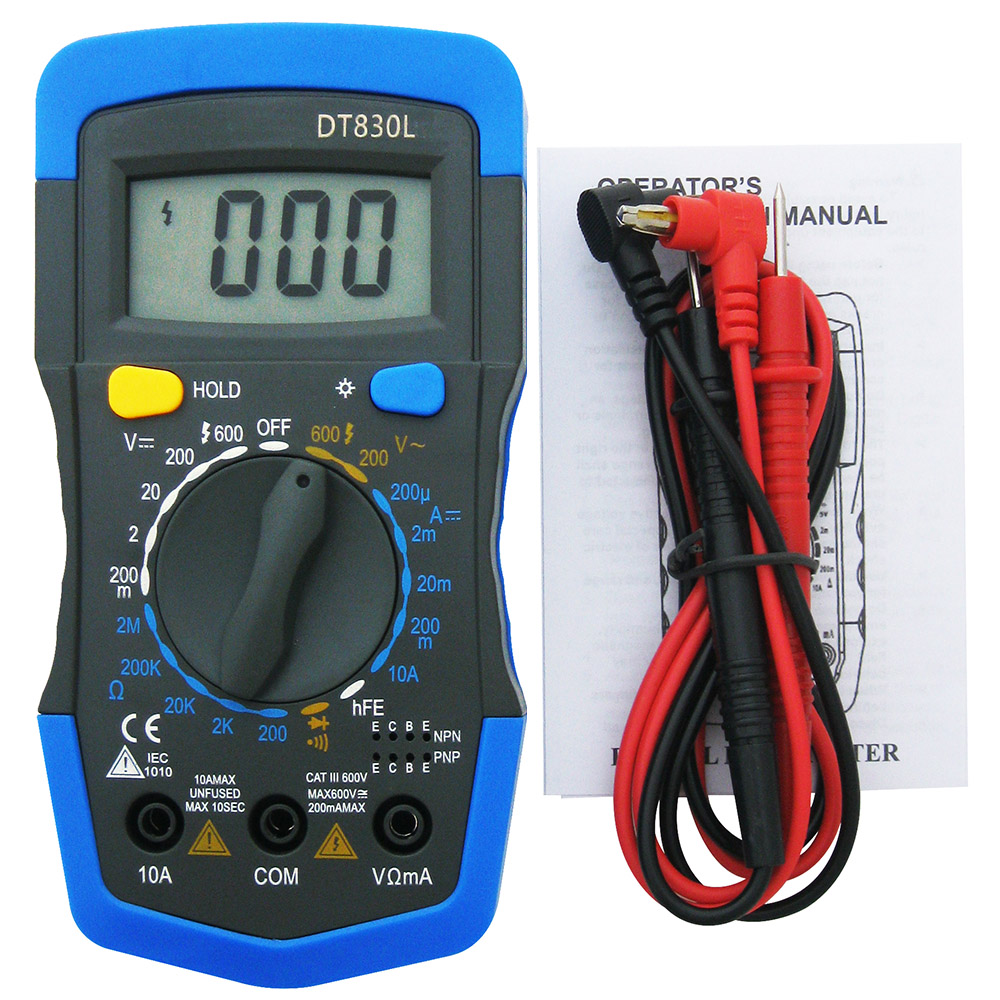

| Standard Accessories | meter (with battery), holster, test lead, manual | meter (with battery), test lead, manual | meter (with battery), test lead, manual |
| Transistor Test | — | yes | yes |
| Square Wave Output | — | yes | — |
Applications
- Electrical installation and troubleshooting in residential and commercial wiring
- Electronics repair and circuit board diagnostics
- Appliance and motor fault finding
- Educational and laboratory use
Docs & Software
Packaging
Packing: color box Packing quantity: 60PCS/CTN Carton size: 30.8x28.3x62CM G.W. / N.W.: 15/14KG
