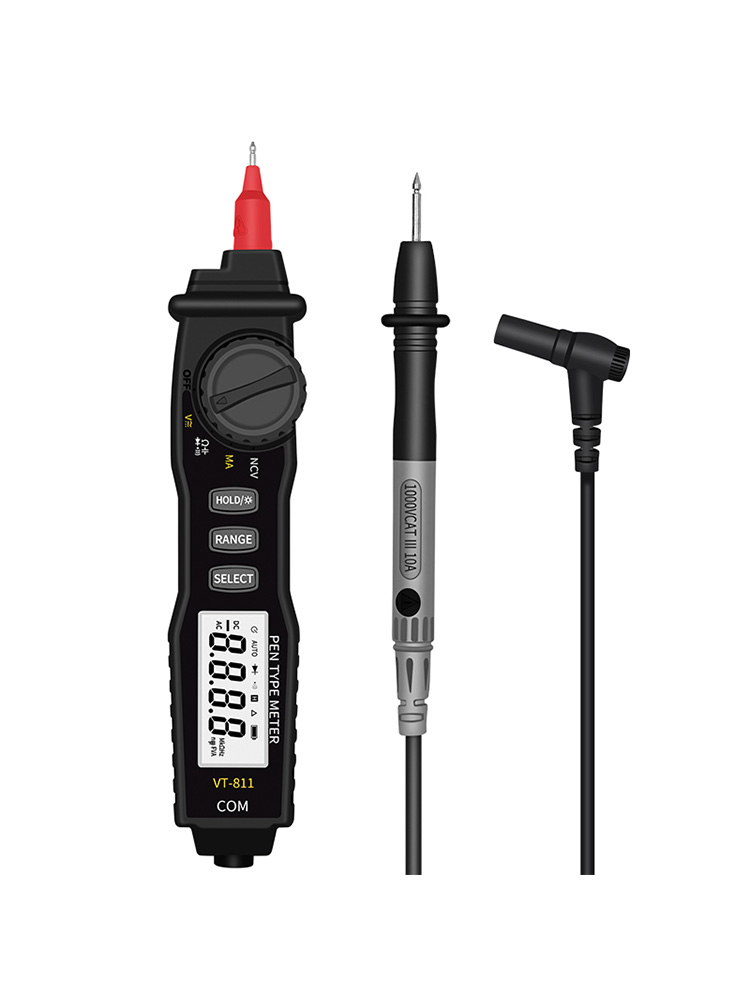

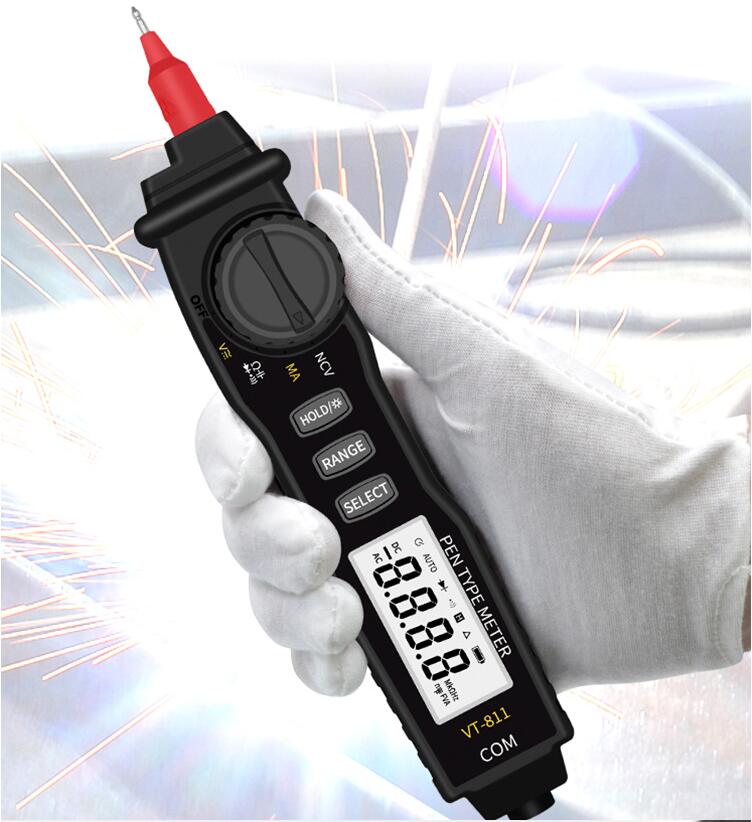

VT811 Digital Multimeter
On-the-go electrical checks in panels and junction boxes
VT811
- DCV: 400m-4-40-400-600V u00b11.3%
- ACV: 4-40-400-600V u00b11.7%
- Resistance: 400-4k-40k-400k-4M-40Mu03a9 u00b12.0% Capacitance:4nF-40nF-400nF-4uF-40uF-400uF-4mF u00b16.0%
Features
- 4000-count display with high resolution
- Backlit LCD for clear reading in low light
- Data hold to freeze readings
- Auto power off to save battery life
- Non-contact voltage (NCV) detection for safety
- Diode test function
- Continuity buzzer for fast open/short checks
- Capacitance measurement
- Low battery indication
- Overload protection on all ranges
Specifications
| Function | VT811 |
|---|---|
| DCV | 400m-4-40-400-600V u00b11.3% |
| ACV | 4-40-400-600V u00b11.7% |
| DCA | 40m-200mA u00b11.3% |
| ACA | 40m-200mA u00b11.7% |
| Resistance | 400-4k-40k-400k-4M-40Mu03a9 u00b12.0% Capacitance:4nF-40nF-400nF-4uF-40uF-400uF-4mF u00b16.0% |
| LCD Size | 39x16mm |
| MAX Display | 4000 |
| Low Battery Indication | yes |
| Overload Protection | yes |
| Diode Test | yes |
| Continuity Buzzer Test | yes |
| Data Hold | yes |
| Backlight | yes |
| Power Supply | Tow 1.5V AAA batter |
| Product Size | 204x39x30mm |
| Product Weight | about 70g (with holster) |

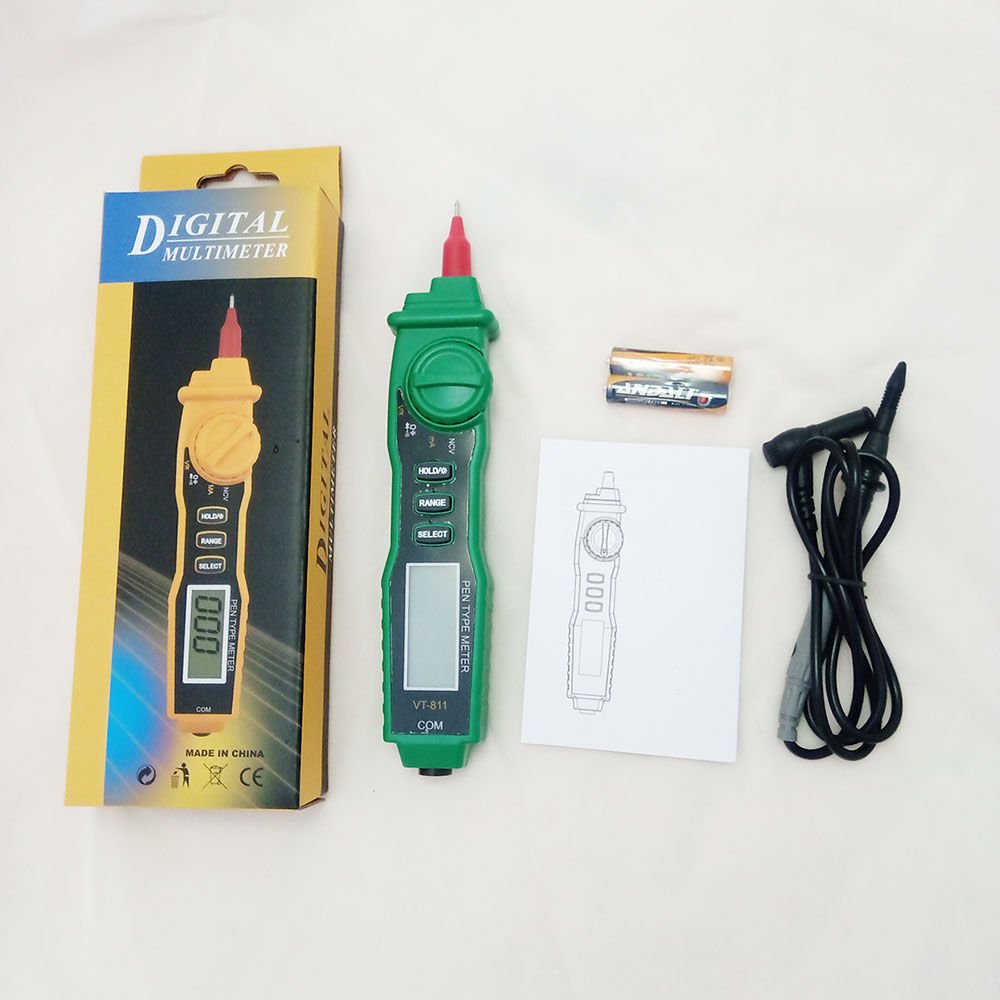

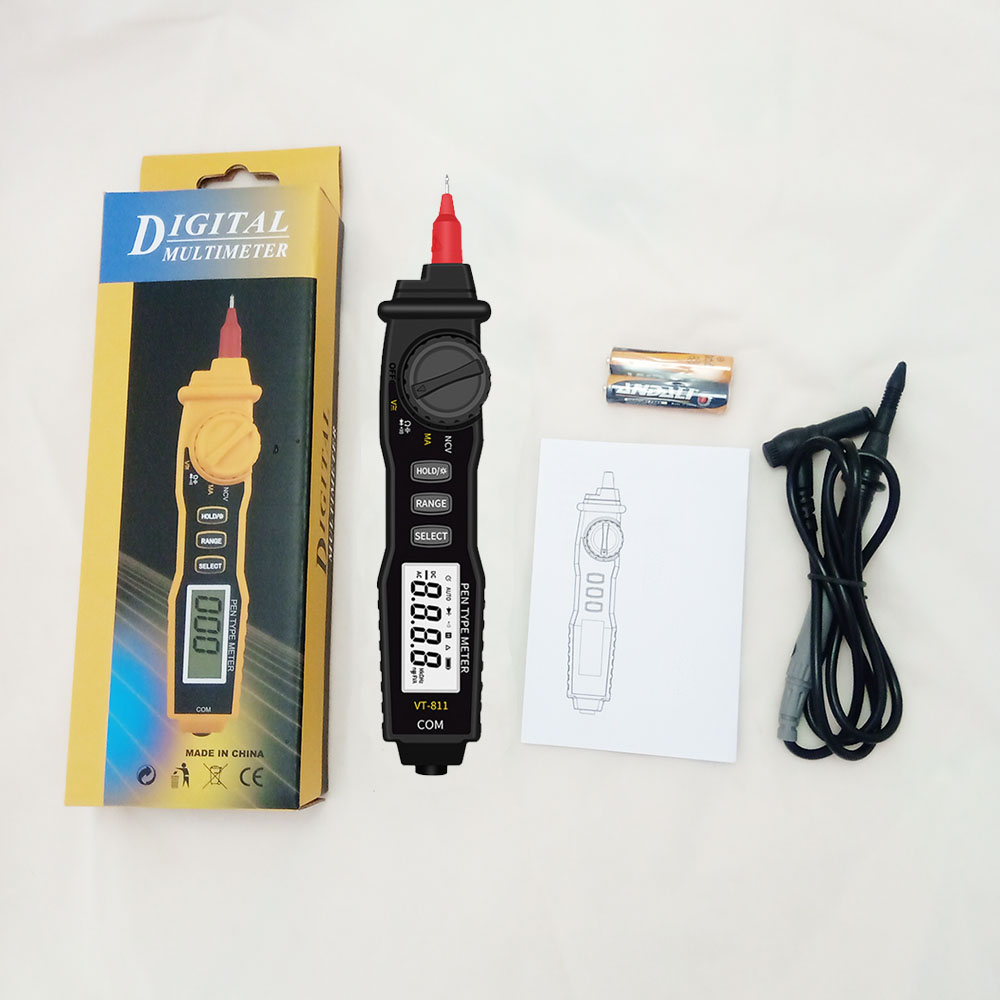

| Standard Accessories | meter (with battery), holster, test lead, manual |
Applications
- On-the-go electrical checks in panels and junction boxes
- Electronics troubleshooting in compact spaces
- Live wire and voltage verification for technicians
Docs & Software
Packaging
Packing: color box Packing quantity: 100PCS/CTN Carton size: 43.5 X 41 X 42CM G.W. / N.W.: 15/14KG
